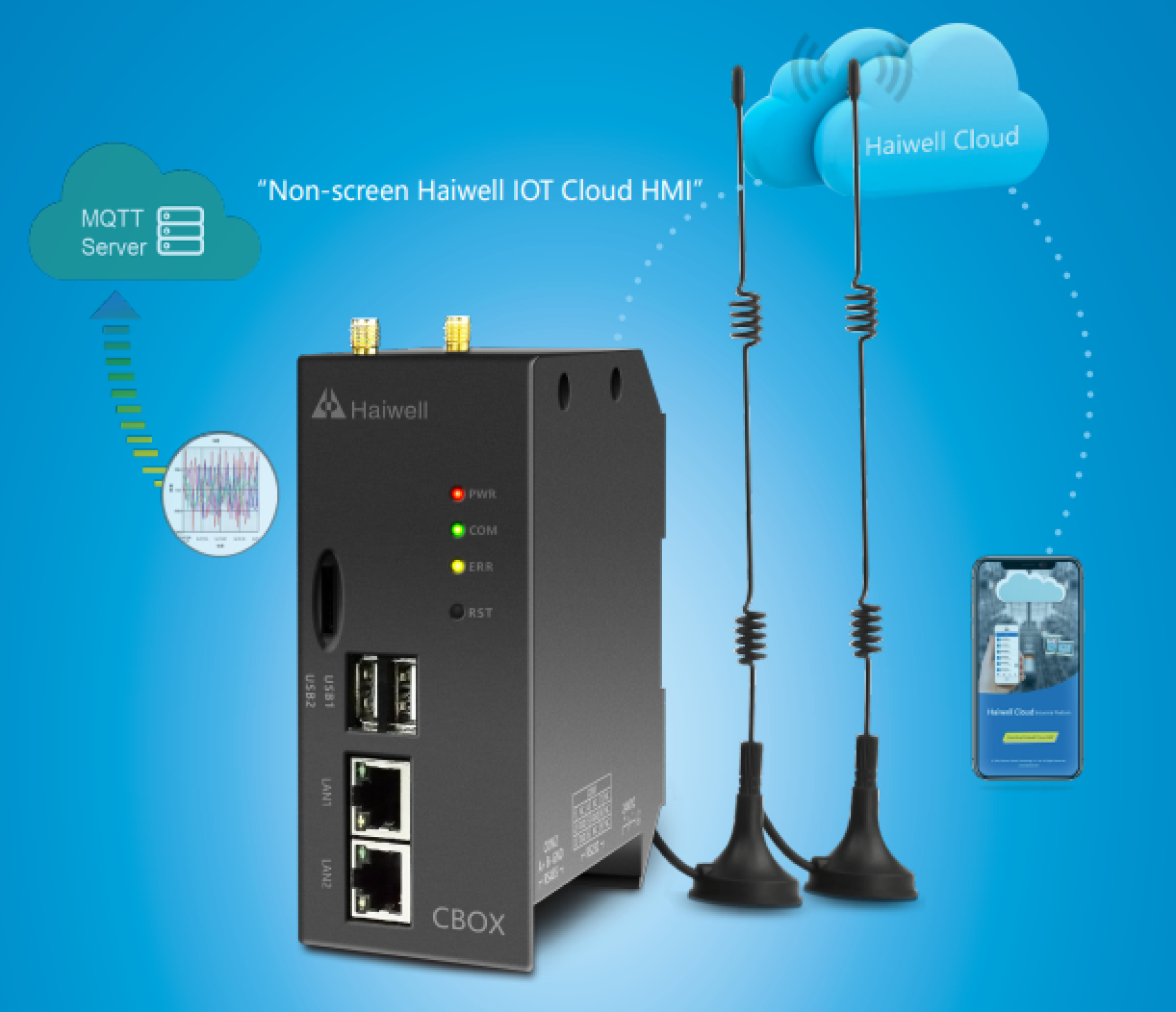

IoT Cloud Box – CBOX

If you need to use an HMI screen but do not want a real touch screen, such as some tasks may not be suitable or do not require a touch screen, we recommend CBOX IoT Cloud Box, which is like a touch screen. You can monitor and control it via a smartphone or PC.

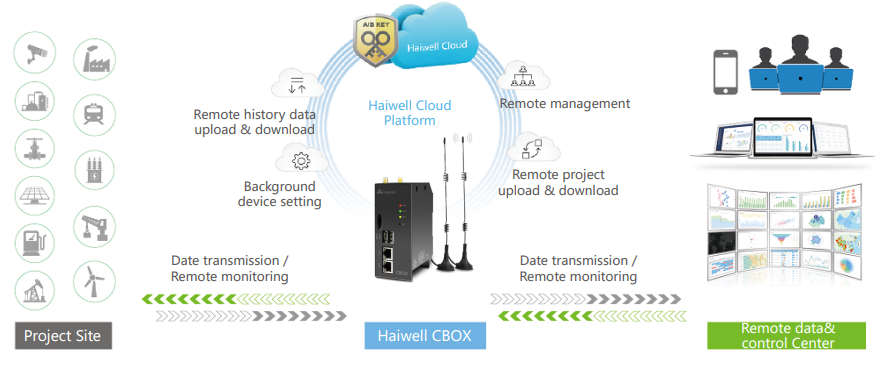

3in1= IoT Gateway + DTU + HMI
1. Can access the screen to monitor and control via smartphones, PCs, iPads, Notebooks and various smart devices via the Haiwell Cloud application (supports both IOS and Android operating systems) and CLOUD SCADA software https://cloud.haiwell.com/#/login
2. Supports online uploads & downloads and can edit programs online anytime, anywhere
3. Can export data to Excel files in real time anytime, anywhere
4. The built-in Web API function can control and receive device data via HTTP protocol

Model List

IoT Cloud Box CBOX Features

1. Gateway + DTU + HMI with space-saving mounting bracket

2. Support voice function, access microphone and speaker via USB, support text to speech, voice, broadcast, intercom function, innovative device cloud voice.

3. Built-in Web API function can control and receive device information via HTTP protocol.

4. Innovative A key B key security mechanism, multi-unit network, database, multi-screen interaction, cloud camera remote monitoring, etc.

5. Support MQTT protocol, can connect to database server/ERP/MES and other systems to easily get information.

Collection and reporting supports millions of concurrent terminal networks.

6. Support Haiwell Cloud SCADA, built-in Haiwell Cloud engine, integrated Haiwell Cloud service, support cloud and mobile access control.

7. Supports a variety of protocols, can be used with many other devices such as PLC, inverter, sensors, etc.

Example of using IoT Cloud Box CBOX

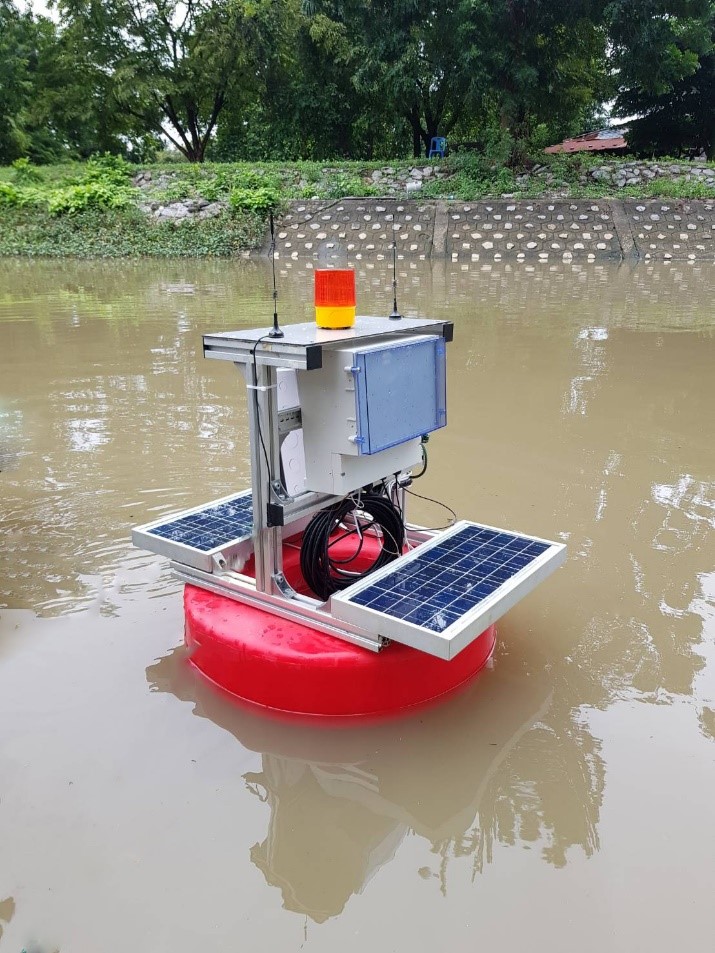

    Water quality measurement station: The water quality measurement station will be installed with a buoy in the middle of the river. It does not require a real touch screen. It can provide a virtual screen for the IoT Cloud Box CBOX and monitor water quality values ​​via a smartphone. In this project, the IoT Cloud Box CBOX will be used to read sensor values. The system uses RS485 communication, with the IoT Cloud Box (CBOX) that has one certified RS485 port. Haiwell SCADA programming is used to read data and display it via the IoT Cloud Box.

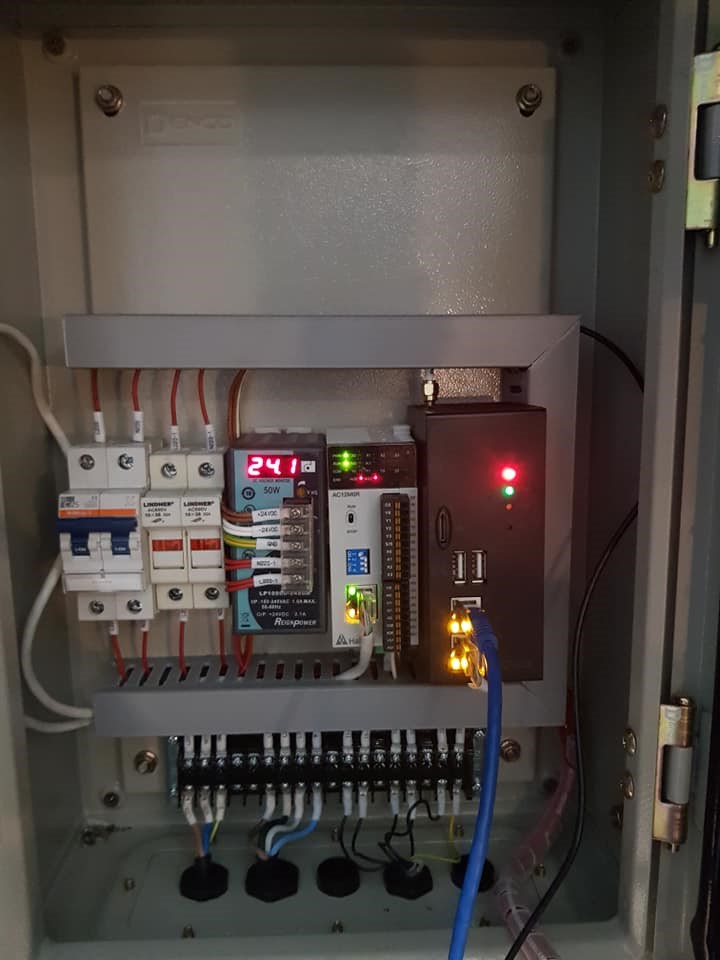

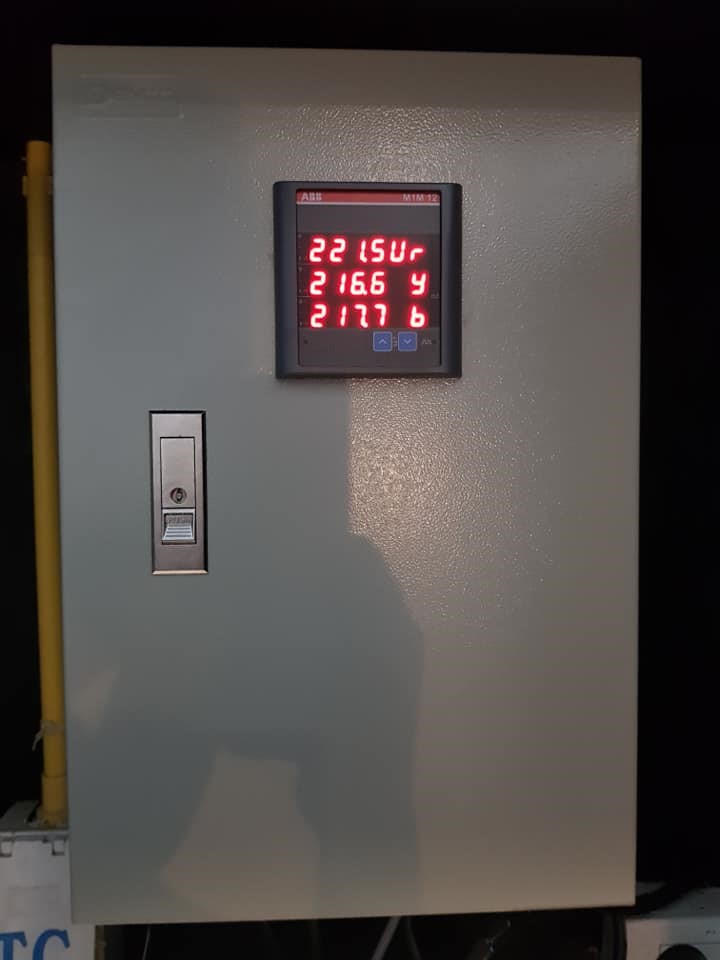

 IoT power meter cabinet: this cabinet is installed in the restaurant, which does not need a real screen for control or monitoring.
In this cabinet, the electrical energy is measured and the electrical energy usage data is collected. Haiwell PLC is used to read the power meter values. IoT Cloud Box CBOX is used to display the results.
