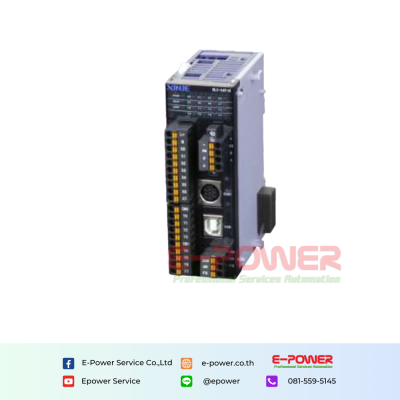

XL1 Series
The function is relatively simple, which can carry out logic control, data
operation and other general functions. XL1 series is equipped with
RS232 port, RS485 port, USB port and supports the networking function
of X-NET fieldbus. No expansion, high-speed processing function.
Product description
The function is relatively simple, which can carry out logic control, data
operation and other general functions. XL1 series is equipped with
RS232 port, RS485 port, USB port and supports the networking function
of X-NET fieldbus. No expansion, high-speed processing function.
- Program capacity 256KB
- I/O sequential control
- Max I/O 16 points
- Basic instruction 0.02-0.05us
- RS232, RS485
- X-NET fieldbus
- USB port high speed download (max 12Mbps)
XL1 series model list
| Model | ||||||
| AC power supply | DC power supply | |||||
| Relay output | Transistor output | Transistor relay mixed output | Relay output | Transistor output | Transistor relay mixed output | |
| NPN type | - | - | - | - | XL1-16T | - |
| - | - | - | - | XL1-16T-U | - | |
| PNP type | - | - | - | - | - | - |
Performance specification
| Product series XL1 - | 16T | 16T-U | |
| Main body I/O | Total points | 16 | 16 |
| Input points | 8 | 8 | |
| Output points | 8 | 8 | |
| Max I/O points | 16 | 16 | |
| High speed positioning | General pulse output | - | - |
| Differential pulse output | - | - | |
| High speed input | Single/AB phase mode | - | - |
| Input mode | - | - | |
| Expansion ability | Right expansion module | - | |
| Left expansion module | - | - | |
| BD board | - | - | |
| Interruption | External interrupt | 6 | 6 |
| Timing interrupt | 20 | 20 | |
| Other interrupts | - | - | |
| Communication function | Communication port | 2 RS232 ports, 1 RS485 port | 1 RS232 port, 1 RS485 port, 1 USB port |
| Communication protocol | Standard Modbus ASCII/RTU communication, free format communication | ||
| Bus function | X-NET fieldbus | ||
| PWM pulse width modulation | - | ||
| Frequency measurement | - | ||
| Precise timing | - | ||
| Multi-station control | - | ||
| Program execution mode | Cyclic scanning mode | ||
| Programming method | Instruction, ladder diagram, c language | ||
| Power off holding | Use FlashROM and lithium battery (3V button battery) | ||
| Basic instruction processing speed | 0.02-0.05US | ||
| User program capacity (secret download mode) | 256KB | ||
