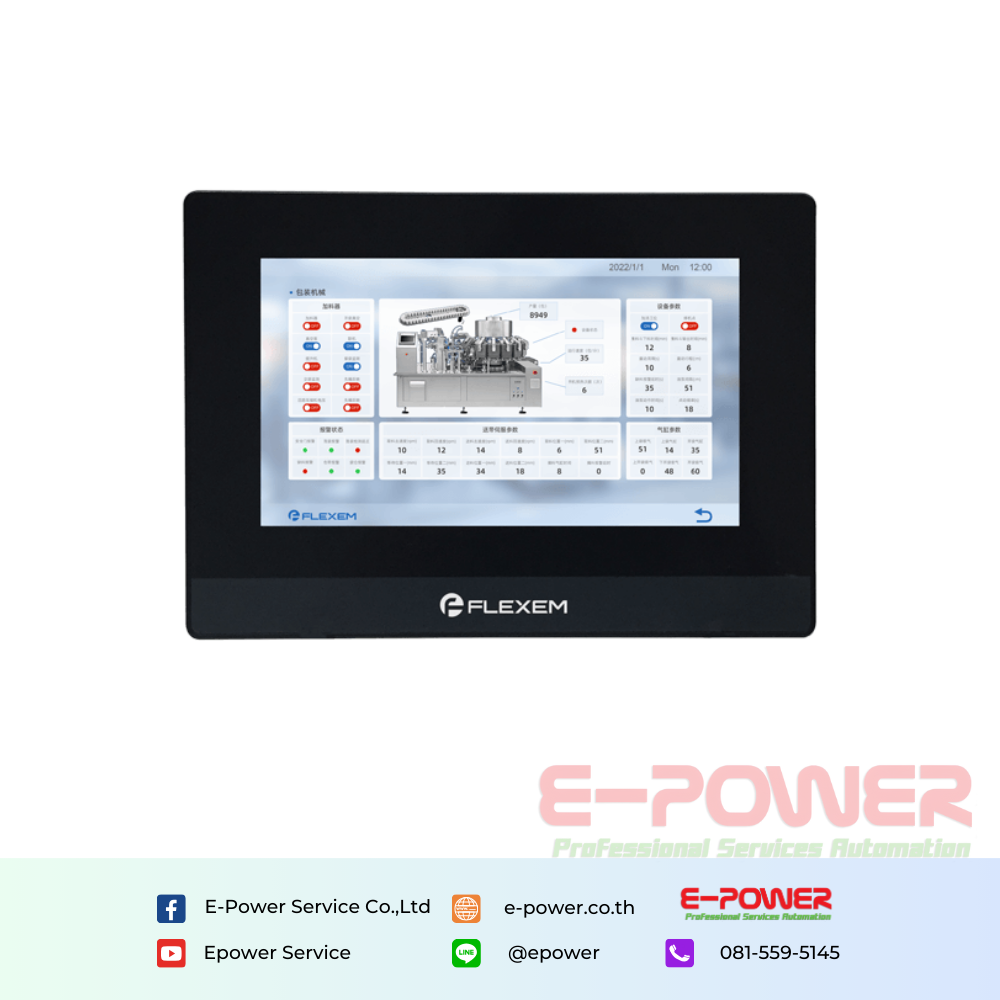

Flexem FE6070C
Display: 7” 16:9 TFT LCD
Resolution: 800×480
Enclosure Material: Engineering plastic
Cutout Dimensions: 192mm×138mm
Flexem FE6070C IoT HMI, features a 7" resistive touchscreen, 800x480 resolution, 24-bit colors, high-performance CPU, 4GB storage, and IoT module supported.
Quantity
Product description
Specs
Hardware
| Display | 7" 16:9 TFT LCD |
| LCD Viewing Angles (T/B/L/R) | 50'/70'/70'/70' |
| Resolution | 800×480 |
| Colors | 24-bit |
| Brightness | 360 cd/m² |
| Touch Panel | 4-wire industrial resistive touchscreen |
| CPU | 600MHz ARM Cortex-A8 |
| Memory | 128M Flash + 128M DDR3 |
| Ethernet Port | N/A |
| USB Port | 1* USB slave 2.0 port, 1* USB host 2.0 port |
| Program Download Method | USB slave / Flash drive |
| Serial Port | COM1: RS232/RS485/RS422; COM3: RS232 |
Electrical
| Rated Power | < 10W |
| Rated Voltage | DC24V, operational range: DC 9V~28V |
| Power Protection | Lightning surge protection |
| Power Interruption Tolerance | < 5mS |
| Certification | EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV |
Environmental
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| UV Resistance | Operating in high UV environment is prohibited (e.g., in direct sunlight) |
| Environmental Humidity | 10~90%RH (non-condensing) |
| Vibration Endurance | 10~25Hz (X/Y/Z direction 2G/30 minutes) |
| Cooling Method | Natural air cooling |
Mechanical
| Protection Level | Front: IP65 (with flush panel cabinet installation), Rear: IP20 |
| Enclosure Material | Engineering plastic (black) |
| Cutout Dimensions | 192mm×138mm |
| Dimensions | 204mm×145mm×33.8mm |
| Weight | About 560g |
Port
Power Terminal (Pin1~3 from left to right)
| Pin1 | FG |
| Pin2 | 0V |
| Pin3 | DC24V |
DB9 Serial Terminal
| Pin1 | Rx-(B） |
| Pin2 | RxD (COM1 RS232) |
| Pin3 | TxD (COM1 RS232) |
| Pin4 | Tx- |
| Pin5 | GND |
| Pin6 | Rx+(A) |
| Pin7 | RxD (COM3 RS232) |
| Pin8 | TxD (COM3 RS232) |
| Pin9 | Tx+ |
Size
