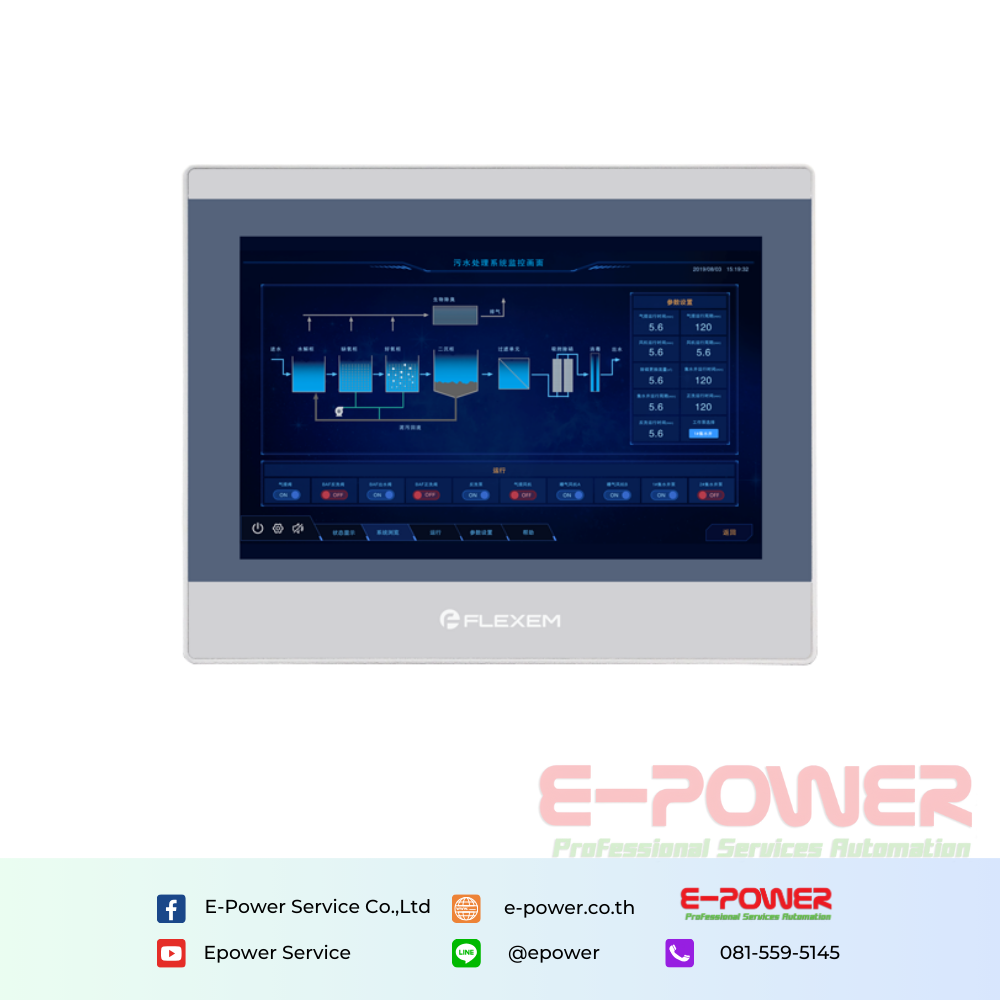

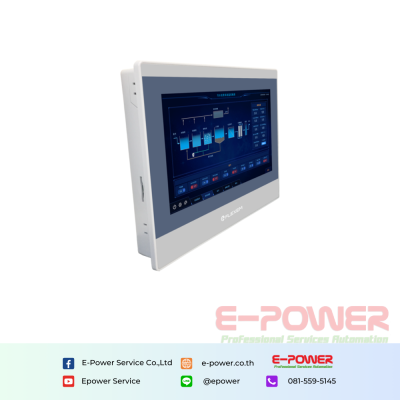

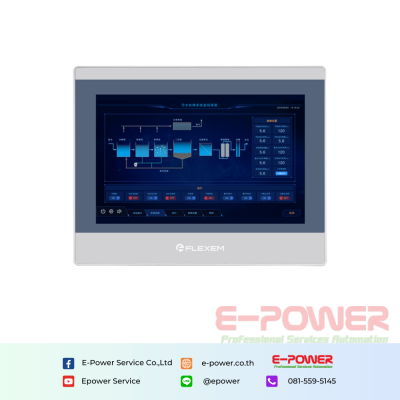

Flexem FE6100WE
Display: 10.1” 16:9 TFT LCD
Resolution: 1024×600
Enclosure Material: Engineering plastic
Cutout Dimensions: 260mm×202mm
Flexem FE6100WE IoT HMI, featuring a 10.1" resistive touchscreen, gray plastic enclosure, high-definition high-brightness full-view display, 1024x600 resolution, 24-bit colors, high-performance CPU, 4GB storage, 1 Ethernet port, IoT module supported, provides a plug-and-play touchscreen connectivity solution.
Quantity
Product description
Specs
Hardware
| Display | 10.1" 16:9 TFT LCD |
| LCD Viewing Angles (T/B/L/R) | 85'/85'/85'/85' |
| Resolution | 1024×600 |
| Colors | 24-bit |
| Brightness | 400 cd/m² |
| Touch Panel | 4-wire industrial resistive touchscreen |
| CPU | 600MHz ARM Cortex-A8 |
| Memory | 128M Flash + 128M DDR3 |
| Ethernet Port | 1* 10M/100M self-adaptive |
| USB Port | 1* USB slave 2.0 port, 1* USB host 2.0 port |
| Program Download Method | USB slave / Flash drive / Ethernet |
| Serial Port | COM1: RS232/RS485/RS422; COM2: RS485; COM3: RS232 |
Electrical
| Rated Power | < 10W |
| Rated Voltage | DC24V, operational range: DC 9V~28V |
| Power Protection | Lightning surge protection |
| Power Interruption Tolerance | < 5mS |
| Certification | EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV |
Environmental
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| UV Resistance | Operating in high UV environment is prohibited (e.g., in direct sunlight) |
| Environmental Humidity | 10~90%RH (non-condensing) |
| Vibration Endurance | 10~25Hz (X/Y/Z direction 2G/30 minutes) |
| Cooling Method | Natural air cooling |
Mechanical
| Protection Level | IP65 (with flush panel cabinet installation), Rear: IP20 |
| Enclosure Material | Engineering plastic (gray) |
| Cutout Dimensions | 260mm*202mm |
| Dimensions | 273mm*213mm*36mm |
| Weight | About 920g |

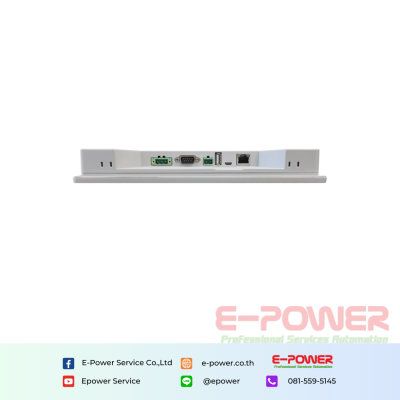

Port
Power Terminal (Pin1~3 from left to right)
| Pin1 | FG |
| Pin2 | 0V |
| Pin3 | DC24V |
DB9 Serial Terminal
| Pin1 | Rx-(B） |
| Pin2 | RxD (COM1 RS232) |
| Pin3 | TxD (COM1 RS232) |
| Pin4 | Tx- |
| Pin5 | GND |
| Pin6 | Rx+(A) |
| Pin7 | RxD (COM3 RS232) |
| Pin8 | TxD (COM3 RS232) |
| Pin9 | Tx+ |
485 Terminal (Pin1~2 from left to right)
| Pin1 | A+ (COM2 RS485) |
| Pin2 | B- (COM2 RS485) |
