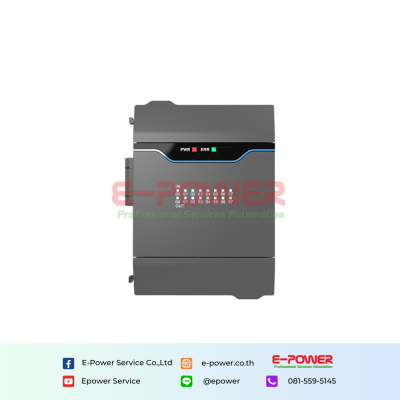

Flexem F5-MA0800A
Input: 8
Output: N/A
Enclosure Material: Engineering plastic
Programming Architecture: IEC61131-3
Flexem F5-MD0800A, F5 series PLC analog I/O module, 8 inputs, multiple expansion module options available.
Quantity
Product description
Specs
Hardware
| Input | 8 |
| Output | N/A |
| Resolution | 16-bit |
| Input/Output Signal Range | Input: voltage -10~10V, current 0~20mA; output: voltage 0~10V, current 0~20mA |
| Full-scale Value Range | Customizable (-30000~30000) |
| Conversion Precision | ±0.2% (full-scale range) |
| Maximum Allowable Input Signal | Voltage: 30V, current: 30mA |
| Input Impedance | Voltage > 200k ohms, current < 250 ohms ±5% |
| Allowable Output Load Range | N/A |
| Rated Voltage | 24VDC -15%/+20%, maximum of 3.2W. Provided internally in the main unit, no external input required |
| Wiring Strucutre | Detachable terminal block |
| Usage | Attached on the right side of FL5/FC5 series main units |
Environmental
| Operating Temperature | -10~60°C |
| Storage Temperature | -20~70°C |
| Environmental Humidity | 5~95%RH (non-condensing) |
Mechanical
| Installation | Directly installed on DIN 46277 rail (width 35mm) or fixed with screws |
| Dimensions | 66mm×90mm×83mm |
