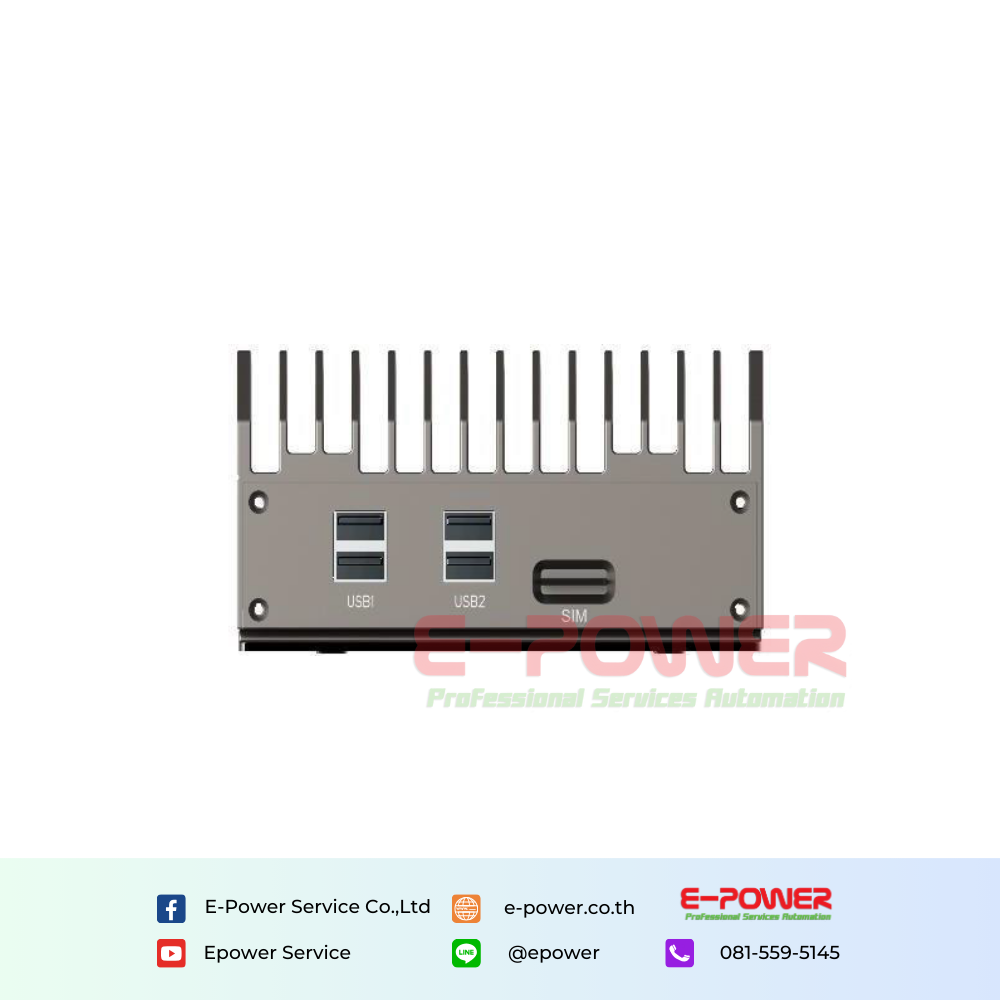

TABNAR03

Quantity

Product description

Model	TABNAR03
Module	AGX Orin (32GB RAM)
GPU	1792 CUDA cores and 56 Tensor cores, 939MHz, 108 Sparse TOPS, up to 200 Sparse TOPS(INT8)
CPU	8-core ARM v8.2 Cortex-A78AE 64bit, 2.2GHz
Encode	H.265 (HEVC), H.264, AV1,JPEG
Decode	H.265 (HEVC), H.264, AV1, VP9, VP8,MPEG-4, MPEG-2, VC-1,JPEG
Memory	32GB 256-bit LPDDR5 DRAM, 3200MHz
Storage	64GB eMMC, TF card, M.2 2280 nvme SSD
Network	2xGigaLAN(RJ45), 1xWIFI, 1x4G/5G(optional)
Extend	1xM.2 2230(PCIe module) 1xMiniPCIE(USB3.0 module), 1xSIM card slot
IO	2xUSB3.0, 2xUSB2.0, 1xOTG, 1xRS485, 2xCAN_FD, 4xGPIOs
Display	1xHDMI2.0(TypeA)
Power IN	DC_IN 12-24V/80W
LED	1xRed LED(Power indication), 1xGreen LED(Controlled by GPIO)
MAX P	45W
Material	Aluminium
Radiator	Fin, without fan
Temp. O	-30-40（80%loading for 50）
Fixed	Table top placement or bracket installation
Colour	Iron grey
Weight	2000g(2700g with packaging)
Size	LxWxH=200x120x75(mm)
Package	310x260x110(mm)
OS	Ubuntu 20.04(NVIDIA JP5.1)
Advantage	Fanless, 5G, SSD, Strong scalability
Weakness	Working temperature is average, Larger size, heavy
