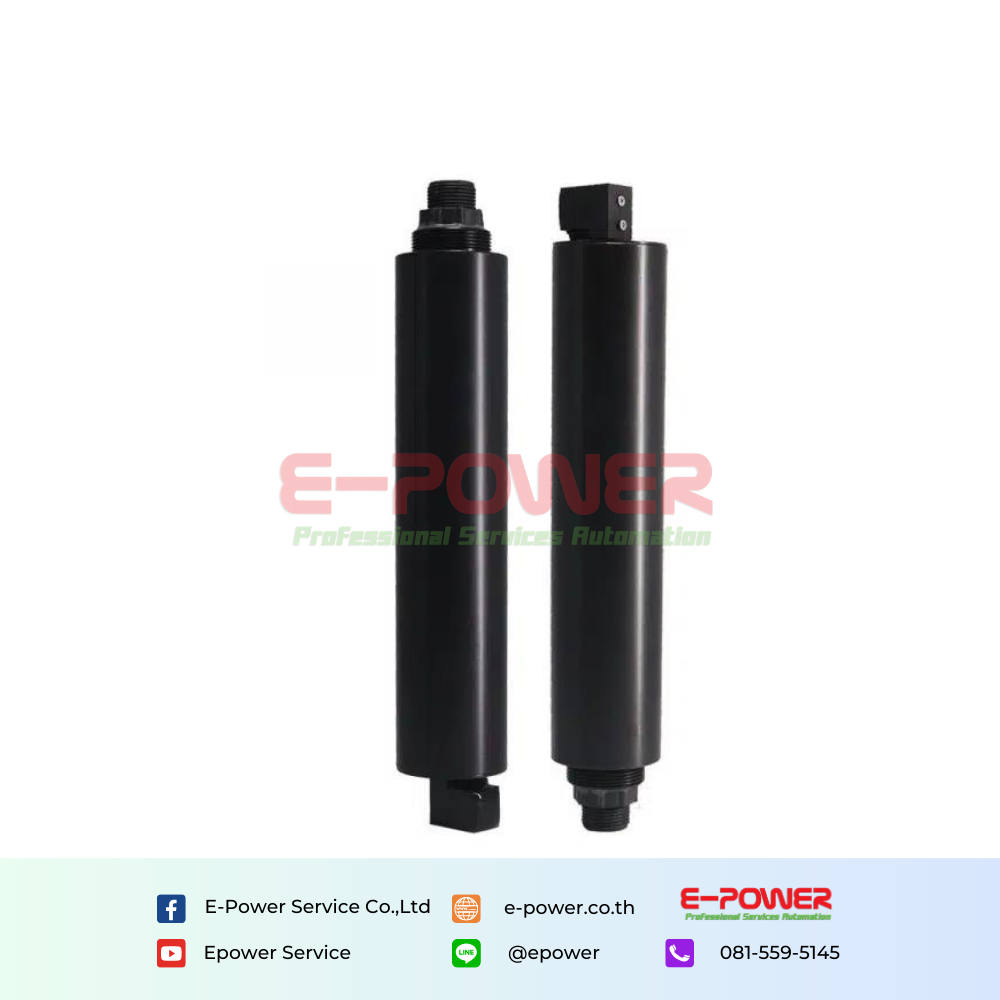

TSS Total Suspended Solids Sensor

The TSS suspended solids sensor adopts the optical fiber structure 135° back light detection method, which can compensate the color of the water body and reduce the influence of the color of the water body and ambient light on the detection results.

Quantity

Categories : Sensor

Brands :Desun Uniwill

Product description

Overview

TSS Total Suspended Solids Sensor adopts the optical fiber structure 135° back light detection method, which can compensate the color of the water body and reduce the influence of the color of the water body and ambient light on the detection results. It has a cleaning function and is not affected by air bubbles and solid pollutants. Impact, small size, easy to install.

Features of TSS Total Suspended Solids Sensor

The detection window is made of sapphire to prevent surface scaling.
With automatic cleaning to prevent contamination and eliminate air bubbles.
Titanium alloy material can be selected according to highly corrosive water bodies.
Online continuous monitoring, real-time control of water quality dynamics.

Technical parameter

Product name	TSS suspended solids
Detection principle	135° Backlight
Measurement range	0.5~5000mg/L
Measurement accuracy	± 3%
Resolution	0.1mg/L
Temperature range	0°C~50°C
Output signal	RS-485, MODBUS protocol
Optical window	optical fiber

Specifications

Waterproof level	IP68
Under pressure	1bar
Product material	POM/316/titanium alloy
Product Size	Φ32 X 169.5mm
Power information	DC6~12V/12~24V, current <50mA
Cable length	Standard 5 meters, longer can be customized
