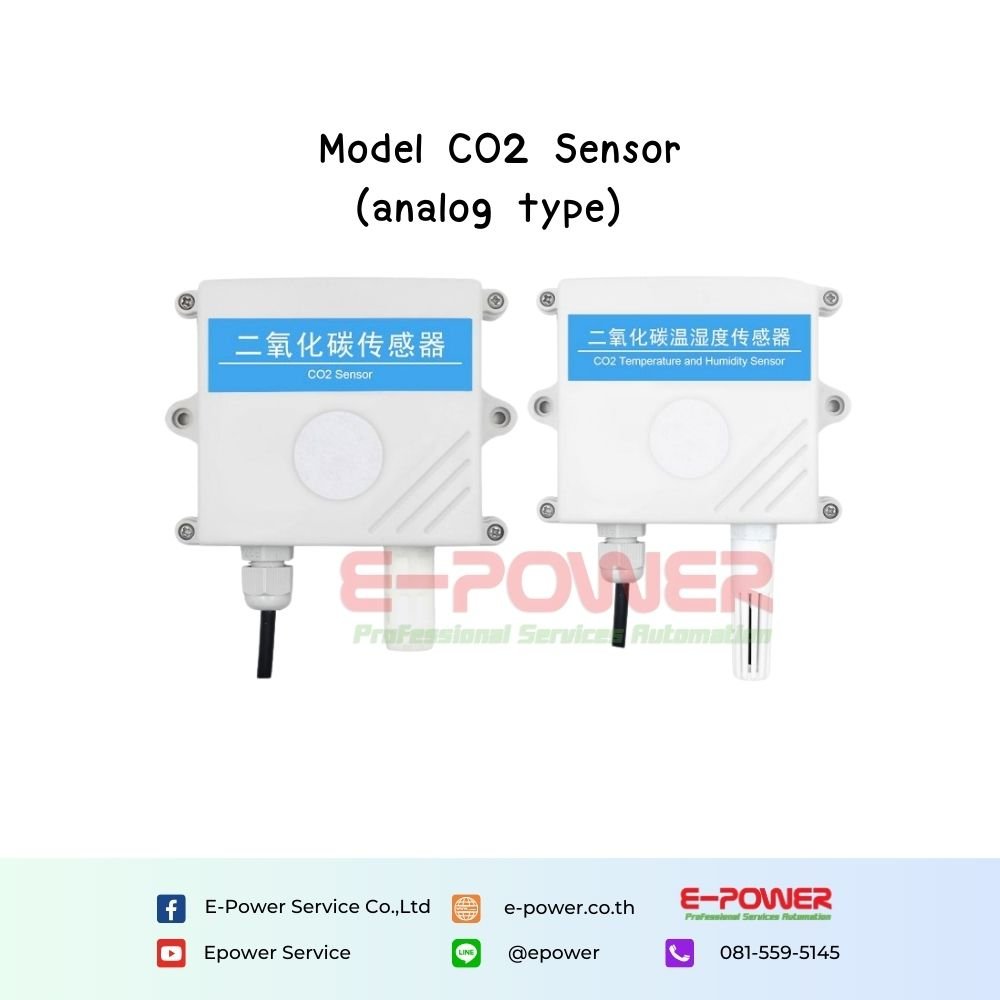

CO2 sensor (analog type)

Basic parameters

Power supply : DC10-30V (0~10v type need DC 24V power supply)
Output signal : 4-20mA/0-5V/0-10V
Average Power consumption : 0.3W@24V DC
Co2measuring : Range: 0~5000ppm
                             Accuracy: ±3%FS
Pressure range : 90~110Kpa
Long-term stability : 2% /year
Response time : 90S
preheating time : 2 minutes
Data update time : 2S
Repeatability : 2%
Useful life : 24 months
Operating environment : -10~50°C/ 0-80%RH (No condensation)
Overall dimensions : 110×85×44mm

Test environment: temperature: 20°C, Humidity: 50%RH, atmospheres pressure :1pa

CO2 sensor (analog type) manual
