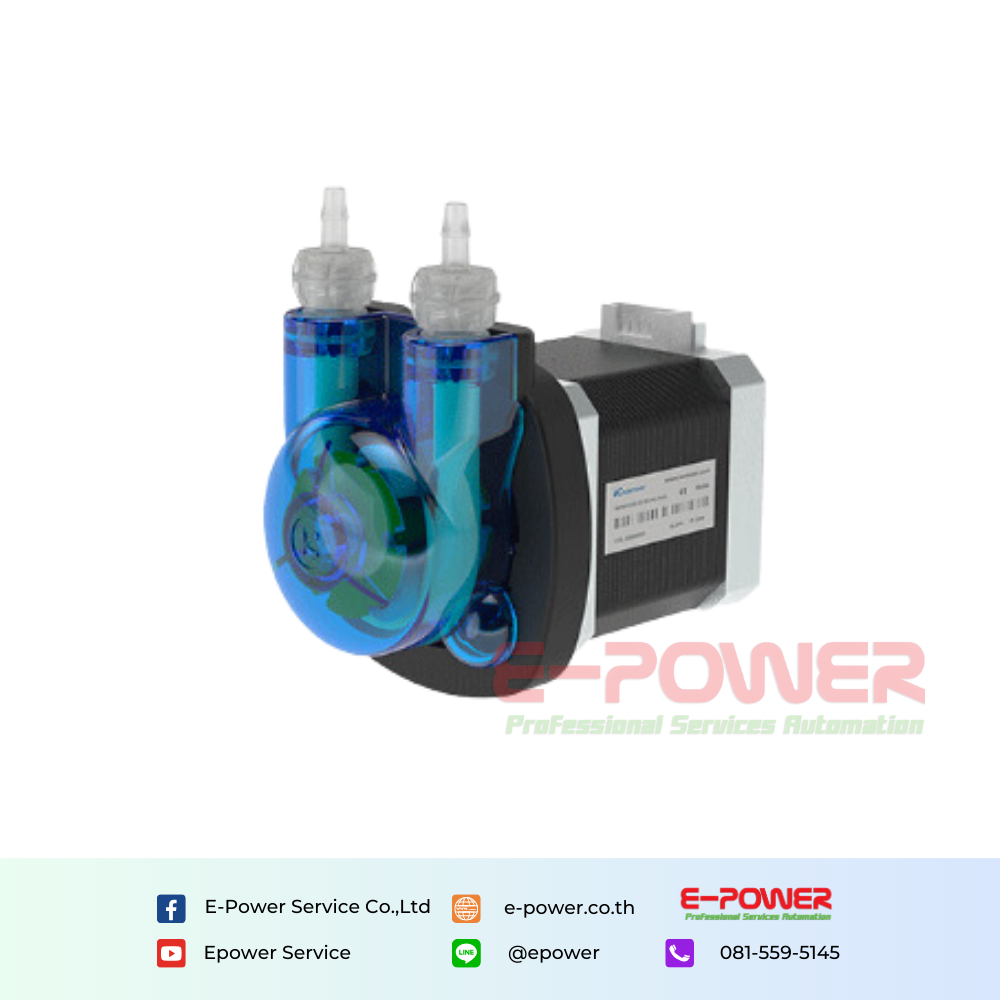

KPAS100-AC Micro Peristaltic Pump

Technical Parameters

Motor type : Synchronous motor
Flow range : 4-15ml/min（±10%）
Power : 6W
Control method : Switch control
Weight : A: About 296g; L: about 306 g
Rated voltage : AC 220V -240V (50/60Hz)
Pump tube life : BPT: 1000 h, S: 200 h
Motor life : 800 hours
Tube material code : B: BPT; S: silicone tube
Tube size code : 14：1.6mm×4.8mm；19：2.4mm×5.6mm；16：3.2mm×6.4mm
Flow rate : B14/S14：4.2ml/min；B19/S19：8.5ml/min；B16/S16：15.5ml/min
Motor speed : 40 rpm
Reference noise value : Less than 55dB (under the ambient noise of 35dB, the measured distance of 50cm)

Manual KPAS100-AC Peristaltic Pump Product Manual
