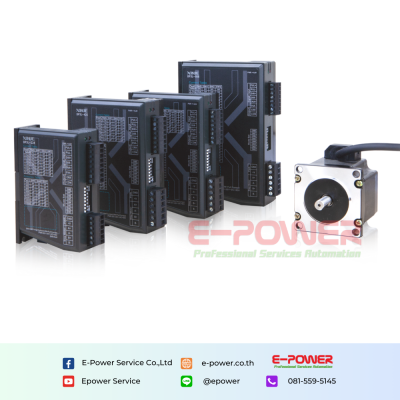

Product description
Driver naming rule
1. Name
| Sign | Product name |
| DP3 | Stepping driver |
2. Series
| Sign | Product series |
| F | Closed-loop type |
| L | Open loop type |
3. Driver output peak current
| Sign | Current |
| 22 | 2.2A |
| 30 | 3.0A |
| 42 | 4.2A |
| 56 | 5.6A |
| 70 | 7.0A |
| 80 | 8.0A |
| 110 | 11.0A |
4. Driver max power supply voltage
| Sign | Voltage |
| 4 | 40V |
| 5 | 50V |
| 8 | 80V |
| 22 | 220V |
5. Voltage type
| Sign | Power supply type |
| A | AC/DC power supply |
| None | DC power supply |
6. Drivertype
| Sign | Driver type |
| 3 | Three-phase driver |
| None | Two-phase driver |
Driver Specification
| DP3L open loop pulse type | DP3L high voltage open loop pulse type | |||||||
| Driver model | DP3L-224 | DP3L-425 | DP3L-565 | DP3L-808 | DP3L-808A | DP3L-11022A | DP3L-11022A3 | |
| Basic specification | Input power supply voltage (V) | DC 20-40 | DC 20-50 | DC 20-50 | DC 20-80 | AC 20-80 | AC 200-240 | AC 200-240 |
| Output current peak value (A) | 0.5-2.2 | 1-4.2 | 1.8-5.6 | 2.7-8.4 | 2.7-8.4 | 3.1-11.3 | 3.1-11.3 | |
| Adaptive motor (base) | 42 | 57 | 57/86 | 86 | 86 | 110/130 | 86/110/130 | |
| Dimension (mm) | 92*62*28 | 110*77*31 | 110*77*31 | 135*86.7*35.5 | 131*112.2*35 | 199.5*137*79 | 199.5*137*79 | |
| Stepping pulse frequency (kHz) | 200 KHz | |||||||
| Control signal input voltage (VDC) | 24 | 5/24V dial switch | ||||||
| Use environment | Use occasion | Avoid dust, oil mist and corrosive gas | ||||||
| Ambient temperature | 0°C-50°C | |||||||
| Maximum operating temperature | 60°C | |||||||
| Humidity | 40%-90% RH (no condensation or water droplets) | |||||||
| Vibration | 5.9m/s2 Max | |||||||
| Storage temperature | -20°C-65°C | |||||||
Note: High voltage stepper is divided into two-phase and three-phase models, which are respectively suitable for two-phase and three-phase 110/130 stepper motors.
Compared with two-phase stepping motor, three-phase stepping motor will run more smoothly, but underthe condition of the same torque, two-phase motor has better cost performance.
