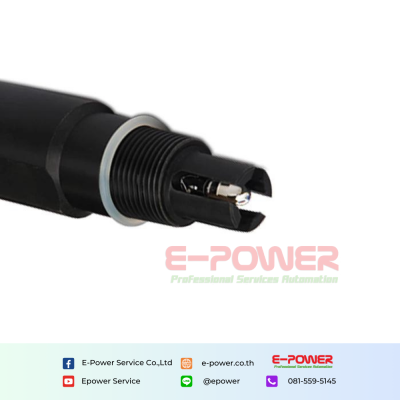

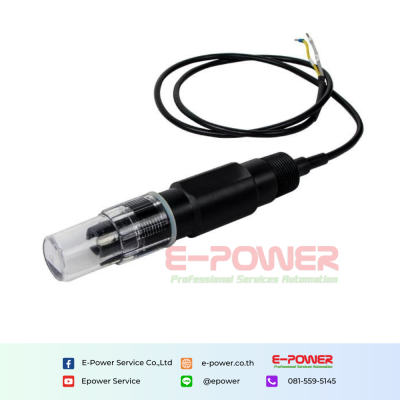

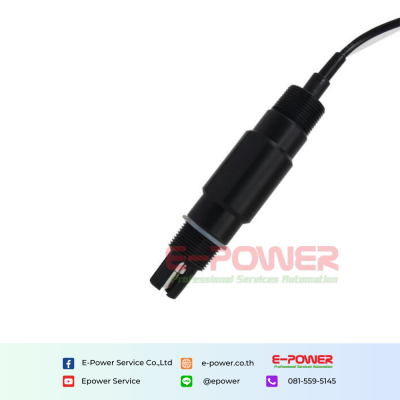

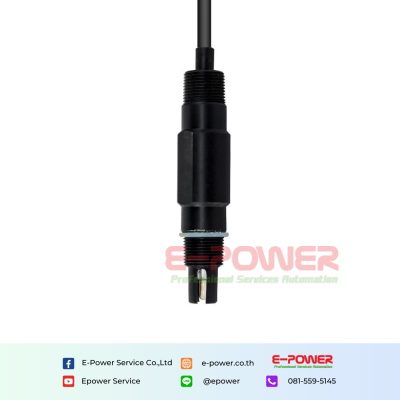

SUP-PH5019 Plastic pH sensor
SUP-PH5019 plastic pH sensor is widely used in wastewater treatment and fields including mining and smelting, papermaking, paper pulp, textiles, petrochemical industry, process of semiconductor electronic industry and downstream engineering of biotechnology.
āļāļģāļāļ§āļ
āđāļāļĢāļāļāđ :Supmea
Product description
Characteristics
- Zero potential point: 7 Âą 0.5 pH
Slope: > 98%
Installation size: 3/4NPT
Pressure: 1 ~ 3 Bar at 25 āđC
Temperature: 0 ~ 60 āđC for general cables
Specification
| Product | pH sensor |
| Model | SUP-PH5019 |
| Zero potential point | 7 Âą 0.5 pH |
| Slope | > 98% |
| Membrane resistance | <250ÎÎĐ |
| Practical response time | < 1 min |

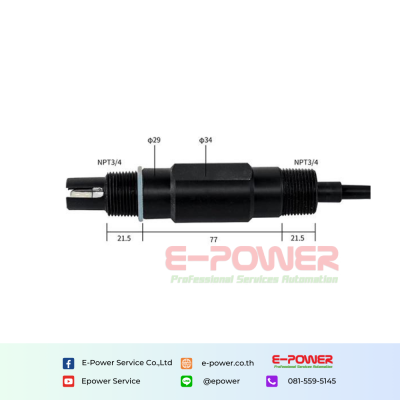

| Installation size | 3/4NPT |
| Measurement range | 1 ~ 14 pH |
| Salt bridge | Porous TEFLON |
| Temperature compensation | NTC10K/Pt100/Pt1000 |
| Temperature | 0 ~ 80 āđC for general cables |
| Pressure | 1 ~ 3 Bar at 25 āđC |
