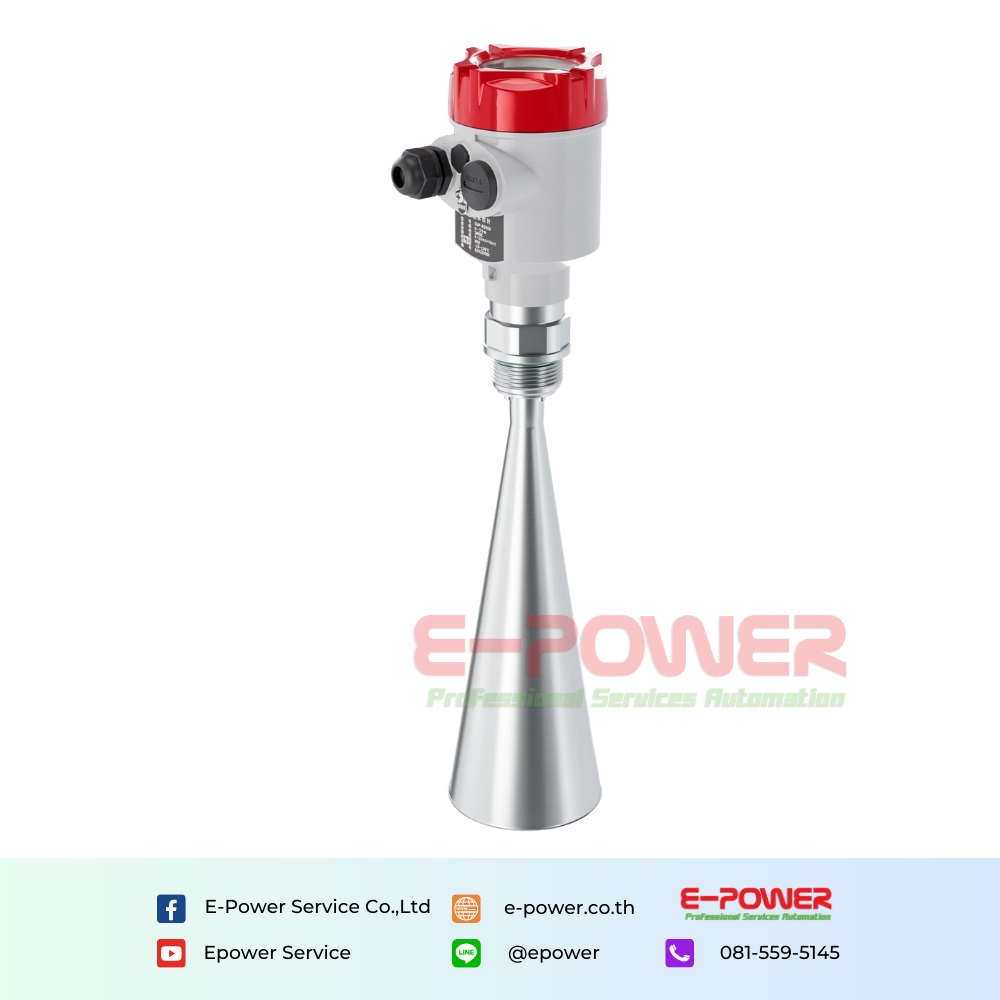

SUP-RD902 26GHz Radar level meter
SUP-RD902T Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
āļāļģāļāļ§āļ
Product description
Characteristics
- Range: 0~30 m
- Application: Liquid
- Frequency Range: 26GHz
Specification
| Product | Radar level meter | |
| Model | SUP-RD902 | |
| Accuracy | Âą5mm (range 5m) Âą10mm (range 20m) Âą15mm (range 30m) | |
| Application | Liquid | |
| Process Connection | Thread, Flange | |
| Medium Temperature | -40°C~130°C(Standard type), -40°C~250°C(High temp type) | |
| Process Pressure | -0.1~4.0MPa | |
| Protection Grade | IP67 | |
| Frequency Range | 26GHz | |
| Signal Output | 4-20mA/HART (Two-wire/Four) RS485/Modbus | |
| Power supply | DC(6~24V)/ Four-wire DC 24V / Two-wire | |
