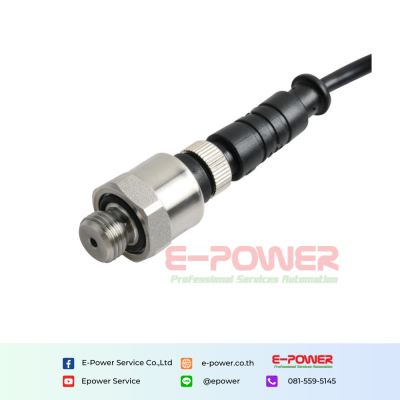

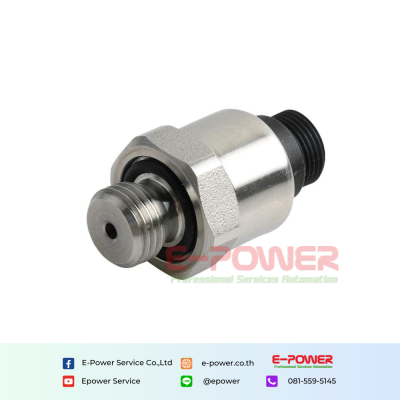

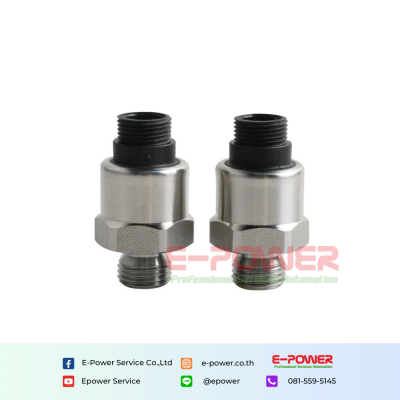

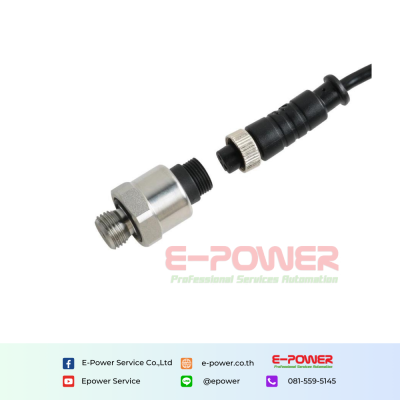

SUP-P300T Cost-effective pressure transducer with ceramic sensor
Cost-effective pressure transducer with ceramic sensor for measurement in gases or liquids
จำนวน
Product description
Characteristics
- Pressure ranges from -100K Pa to 1600KPa / -100K Pa to 1000KPa
- Available output signals include 420mA, 0.54.5V
- Electrical connections: M12x15-pin, Cable type
- Process connections: G¼, R¼, G
Specification
| Power supply | 5 or 24V DC | |
| Accuracy | ±1.0 % | |
| Ambient temperature | -40 °C +125 °C | |
| Process temperature | -20 °C +120 °C | |
| Pressure range | -100KPa+1600 Kpa / -100KPa+1000 Kpa | |
| Process connection | Threads: G¼, R¼, G | |
| Communication | 4...20 mA / 0.54.5V | |
| Response time | 10 ms | |
| Ingress Protection | IP65 | |
Supmea
Pressure transmitter
SUP-P300T
Cost-effective pressure transducer with ceramic sensor
SUP-P300T Cost-effective pressure transducer with ceramic sensor
