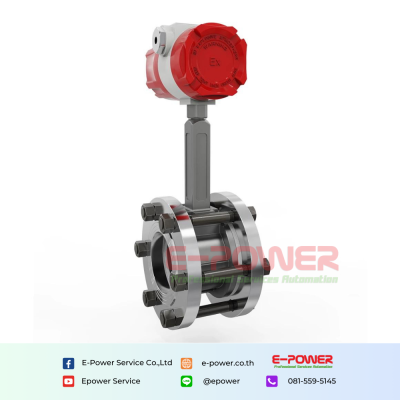

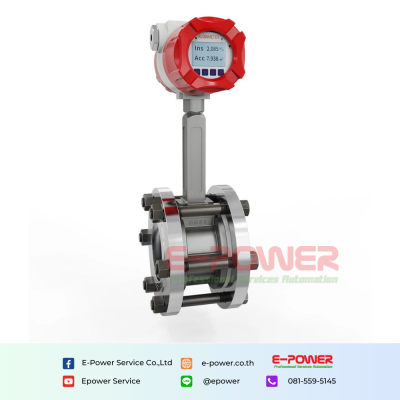

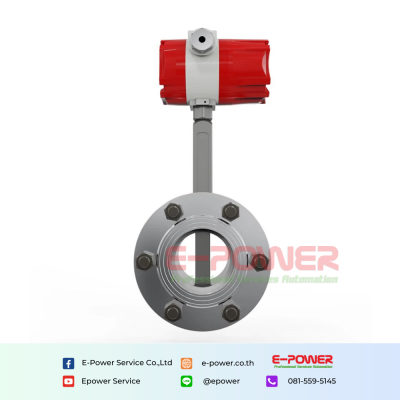

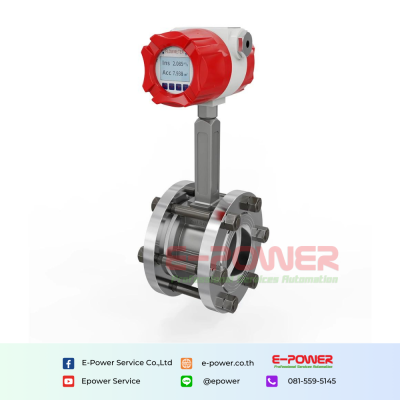

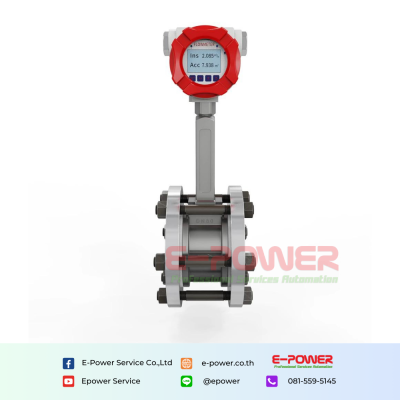

SUP-LUGB Vortex flowmeter wafer installation
SUP-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal, which specialize in measurement of steam, gas and liquid of lower viscosity.
จำนวน
Product description
Characteristics
- Pipe diameter: DN15-DN300
- Accuracy: 1.0% 1.5%
- Range Ratio: 1:8
- Ingress protection: IP65
Specification
| Product | Vortex flowmeter wafer installation | |
| Model | SUP-LUGB | |
| Diameter nominal | DN15~DN300 | |
| Installation | Wafer connection: DN15-DN300(priority PN2.5MPa) | |
| Accuracy | 1.5%, 1.0% | |
| Range Ratio | Gas density:1.2kg/m3, Range ratio: 8:1 | |
| Medium Temperature | -20°C ~ +150°C、-20°C ~ +260°C、-20°C ~ +300°C | |
| Output signal | 4-20mA | |
| Frequency | RS485 communication (Modbus RTU) | |
| Power supply | 24VDC±5% Li battery (3.6 VDC) | |
| Ingress protection | IP65 | |
| Body Materials | Stainless shell | |
| Display | 128*64 dot matrix LCD | |
Supmea
Vortex flowmeter
SUP-LUGB
SUP-LUGB Vortex flowmeter wafer installation
Vortex flowmeter wafer installation
