Flexem FE9156M
Display: 15.6” 16:9 TFT LCD
Resolution: 1920×1080
Enclosure Material: Aluminum alloy
Cutout Dimensions: 380mm×245mm
Flexem FE9156M high-performance touchscreen, featuring a 15.6" resistive touchscreen, gray metal enclosure, high-definition high-brightness full-view display, 1920x1080 resolution, 16-bit colors, high-performance CPU, high-capacity storage, and 2 Ethernet ports, provides a high-performance touch-and-control solution.
จำนวน
รายละเอียดสินค้า
Specs
Hardware
| Display | 15.6" 16:9 TFT LCD |
| LCD Viewing Angles (T/B/L/R) | 85'/85'/85'/85' |
| Resolution | 1920×1080 |
| Colors | 16-bit |
| Brightness | 250 cd/m² |
| Touch Panel | 4-wire industrial resistive touchscreen |
| CPU | 4-core 1.2G Cortex-A53 processor |
| Memory | 8GB EMMC Flash + 1GB DDR3 |
| Ethernet Port | 2* 10M/100M self-adaptive |
| USB Port | 1 USB slave 2.0 port, 1 USB host 2.0 port |
| Program Download Method | USB slave / Flash drive / Ethernet |
| Serial Port | COM1: RS232/RS485/RS422; COM2: RS485/RS422; COM3: RS232 |
Electrical
| Rated Power | < 18W |
| Rated Voltage | DC24V, operational range: DC 18V~28V |
| Power Protection | Power isolation module with lightning surge protection |
| Power Interruption Tolerance | < 5mS |
| Certification | EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV |
Environmental
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| UV Resistance | Operating in high UV environment is prohibited (e.g., in direct sunlight) |
| Environmental Humidity | 10~90%RH (non-condensing) |
| Vibration Endurance | 10~25Hz (X/Y/Z direction 2G/30 minutes) |
| Cooling Method | Natural air cooling |
Mechanical
| Protection Level | IP65 (with flush panel cabinet installation), Rear: IP20 |
| Enclosure Material | Aluminum alloy |
| Cutout Dimensions | 380mm×245mm |
| Dimensions | 394mm×256mm×36mm |
| Weight | About 2250g |
Port
Power Terminal (Pin1~3 from left to right)
| Pin1 | FG |
| Pin2 | 0V |
| Pin3 | DC24V |
DB9 Serial Terminal
| Pin1 | Rx-(B） |
| Pin2 | RxD (COM1 RS232) |
| Pin3 | TxD (COM1 RS232) |
| Pin4 | Tx- |
| Pin5 | GND |
| Pin6 | Rx+(A) |
| Pin7 | RxD (COM3 RS232) |
| Pin8 | TxD (COM3 RS232) |
| Pin9 | Tx+ |
COM2 Port
| Pin1 | Rx-(B） |
| Pin2 | RxD (COM2 RS232) |
| Pin3 | TxD (COM2 RS232) |
| Pin4 | Tx- |
| Pin5 | GND |
| Pin6 | Rx+(A) |
| Pin7 | RxD (COM4 RS232) |
| Pin8 | TxD (COM4 RS232) |
| Pin9 | Tx+ |

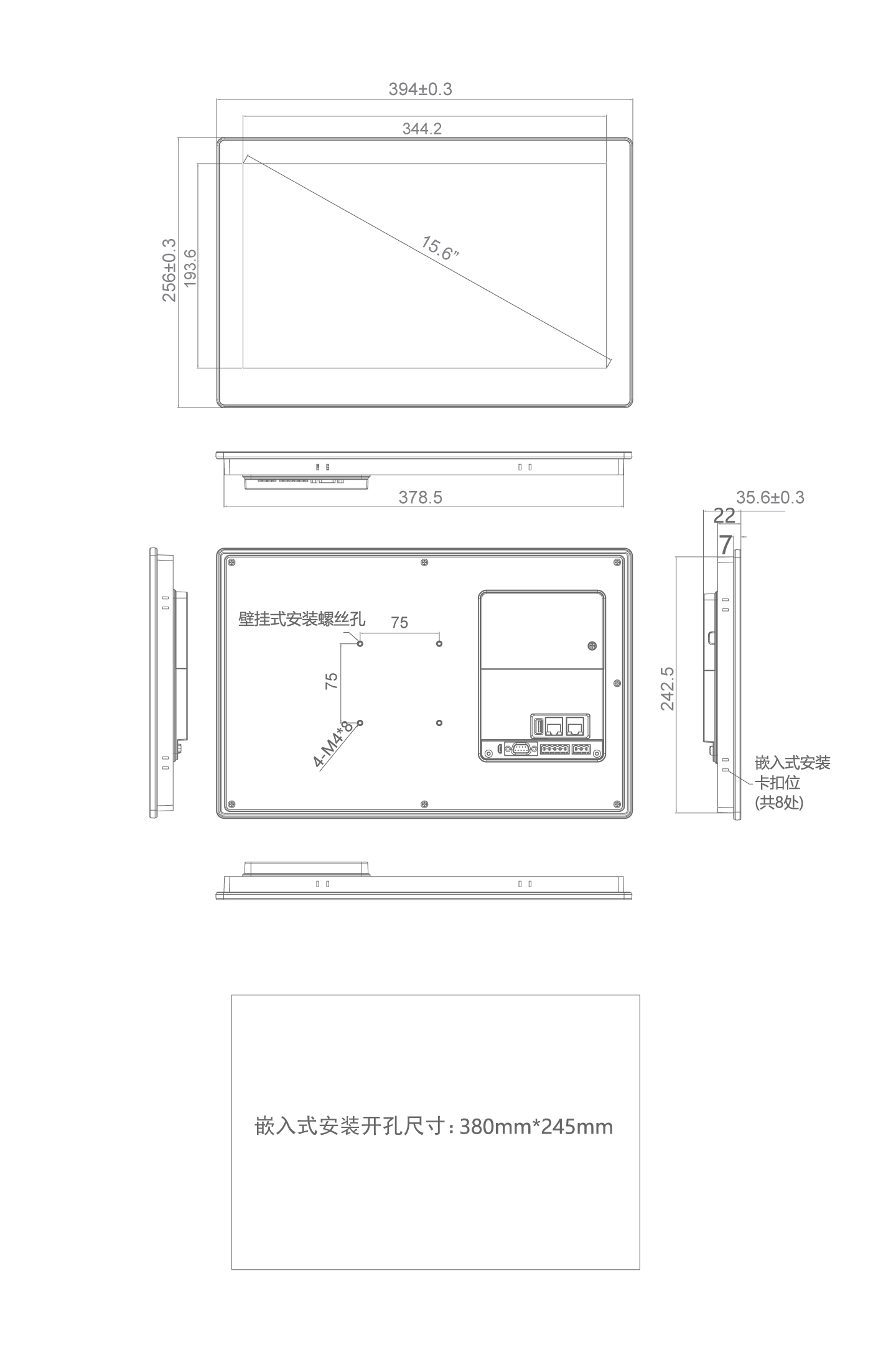

Size
