รายละเอียดสินค้า

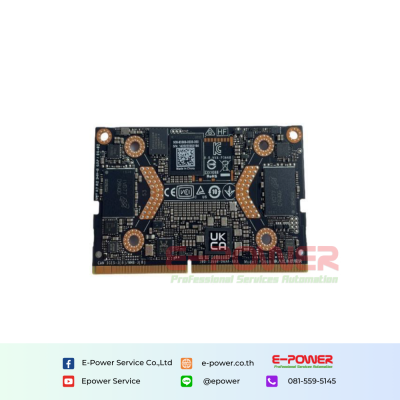

| Model | Jetson Xavier NX16GB |
| PN. | 900-83668-0030-000 |
| AI Perf. | Up to 21 TOPS (INT8) |
| GPU | Volta GPU, 384 NVIDIA® CUDA® cores | 48 Tensor cores | End-to-end lossless compression | Tile Caching | OpenGL® 4.6 | OpenGL ES 3.2 | Vulkan 1.1 | CUDA 10 | Maximum Operating Frequency: 1100 MHz |
| CPU | Carmel CPU ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture | 3x dual-core CPU clusters (six NVIDIA Carmel processor cores) connected by a high-performance system coherency interconnect fabric | L3 Cache: 4 MB (shared across all clusters) NVIDIA Carmel (Dual-Core) Processor: L1 Cache: 128 KB L1 instruction cache (I-cache) per core; 64 KB L1 data cache (Dcache) per core | L2 Unified Cache: 2 MB per cluster | Maximum Operating Frequency: 1900 MHz |
| Display Controller | Two multi-mode (eDP/DP/HDMI) Serial Output Resources (SOR) eDP 1.4a | DP 1.4 | HDMI 2.0a/b Maximum Resolution (eDP/DP/HDMI): (up to) 3840x2160 at 60 Hz(up to 36 bpp) |
| Encode | Standards supported: H.265 (HEVC), H.264, VP9, 2x464 MP/sec (HEVC), 2x 4K @ 30 (HEVC), 6x 1080p @ 60 (HEVC), 14x 1080p @ 30 (HEVC) |
| Decode | Standards supported: H.265 (HEVC), H.264, VP9, VP8, MPEG-4, MPEG-2, VC-1 2x690 MP/sec (HEVC), 2x 4K @ 60 (HEVC), 4x 4K @ 30 (HEVC) 12x 1080p @ 60 (HEVC), 32x 1080p @ 30 (HEVC), 16x 1080p @ 30 (H.264) |
| Memory | Secure External Memory Access, Using TrustZone® Technology, System MMU | Maximum Operating Frequency: 1600 MHz |
| 16 GB 128-bit LPDDR4x DRAM | |
| Storage | 16 GB eMMC 5.1 Flash Storage | Bus Width: 8-bit | Maximum Bus Frequency: 200 MHz (HS400) |
| Network | 10/100/1000 BASE-T Ethernet | Media Access Controller (MAC) |
| CSI Camera | 14 lanes (3 x4 or 6 x2) MIPI CSI-2 | D-PHY 1.2 (2.5 Gb/s per pair, total up to 30 Gbps) |
| Extend | xHCI host controller with integrated PHY (up to) 1x USB 3.1, 3x USB 2.0 | PCIe 1x1 (GEN3) + 1x4 (GEN4) | SD/MMC controller (supporting eMMC 5.1, SD 4.0, SDHOST 4.0 and SDIO 3.0) | 3x UART | 2x SPI | 4x I2C | 1x CAN | 2x I2S | GPIOs |
| Power IN | 5V |
| MAX P | 10-15W |
| Temp. O | (Tj): -25°C 90°C |
| Size | 69.6mmx45mm |
| Connector | 260 PIN SO-DIMM |
