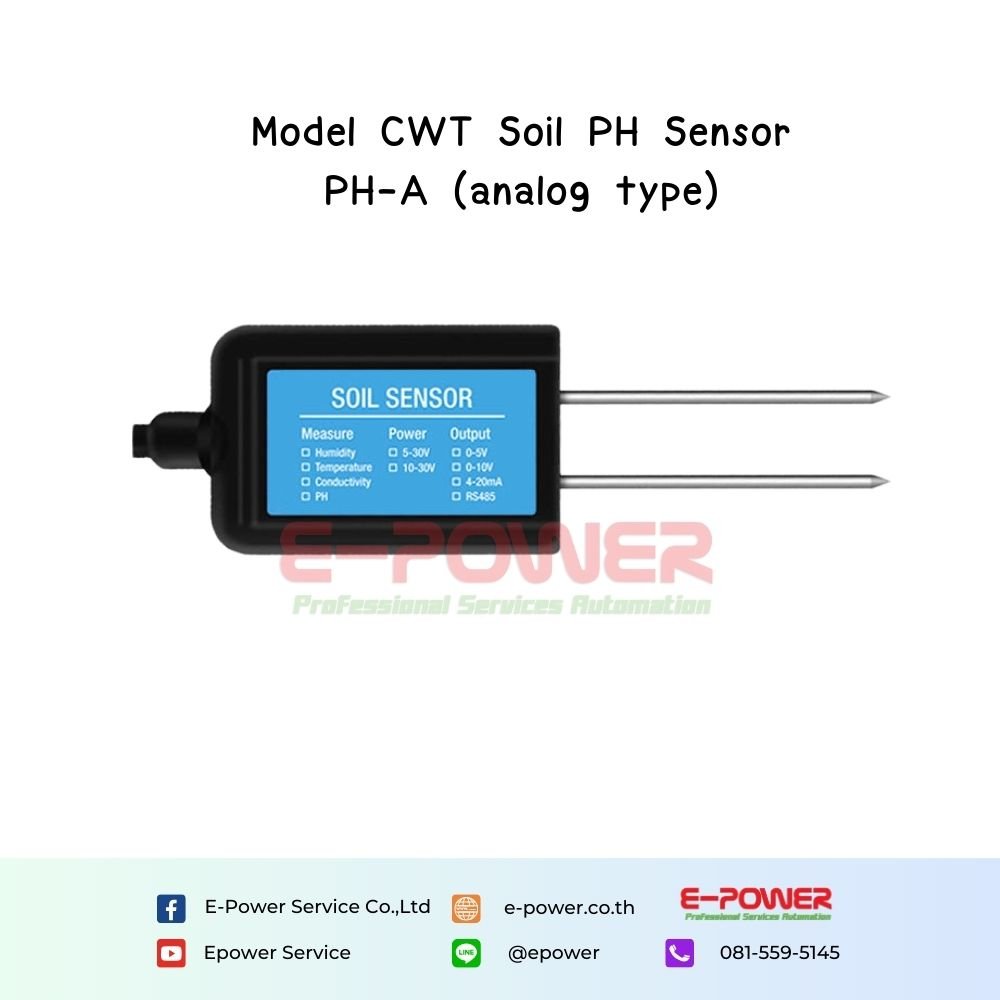

CWT Soil PH sensor (analog type)

Soil parameters measuring

PH  Measuring range : 3-9 PH
PH Accuracy : ±0.3PH
PH Resolution: 0.1
PH Long-term stability: 5%/year
PH Response time: 10S

Basic parameters

Power supply : 4-20mA/0-5V type: DC4.5-30V / 0-10V type: DC18-30V
Max Power consumption : 0.5W@24V DC
Protection class : IP68, long-term immersion in water use
Cable length : 2M
Operating environment : -40°C-80°C
Overall dimensions : 45 * 15 * 123mm
Output signal : Current output: 4-20mA / Voltage output: 0-5V/0-10V
Load capacity : Current output: 600Ω/ Voltage output: resistance 250Ω

Manual: PH-A (analog type)
