Specification
- Combined current transformer is also called the three-phase current transformer
- As current signal acquisition device, it is generally matched with multi-loop current monitoring device (AMC16), PZ300, moulded case circuit breaker and other products.
- It can save installation space, reduce the cumbersome wiring, be convenient to use and effectively reduce the cost.
| Type | Ratio | Class & Burden (VA/ Ὡ) | Turns | Dia. (mm) | ||
| 0.2 Class | 0.5 Class | 1 Class | ||||
| Z-10 | 50A/25mA | 10 | 1 | ɸ10 | ||
| Z-3*ɸ15 | 10A/20mA | 10 | 2 | ɸ15 | ||
| 20-100A/20mA | 10 | 1 | ||||
| 100A/50mA | 10 | 1 | ||||
| Z-3*ɸ15 | 5-100/5A | 1.5VA | ɸ20 | |||
| 150/5A | 1.5VA | |||||
| 200/5A | 2.5VA | |||||
| 5-100/1A | 1.5Ὡ | |||||
| 150/1A | 1.5Ὡ | |||||
| 200/1A | 2.5Ὡ | |||||
| 5-200A/50mA | 10Ὡ | |||||
| 100-200A/20mA | 10Ὡ | |||||
| Z-3*ɸ35 | (100-150)A/5(1)A | 2.5 | 1 | ɸ35 | ||
| 200 A/5(1)A | 1.5 | 1 | ||||
| 250 A/5(1)A | 3.75 | 1 | ||||
| (300-450)A/5(1)A | 5 | 1 | ||||
| (500-850)A/5(1)A | 10 | 1 | ||||
| (1000-1250)A/5(1)A | 10 | 1 | ||||

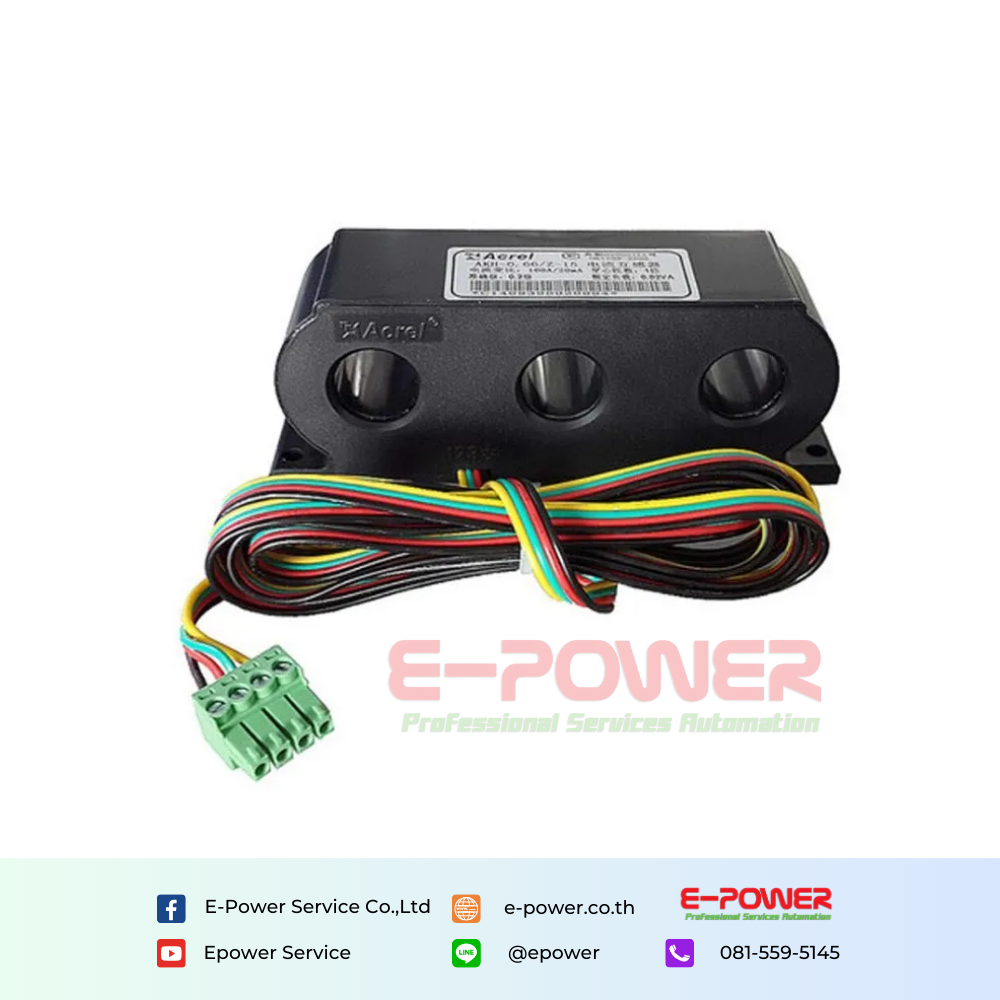

AKH-0.66Z Current Transformer
Current Transformer
AKH-0.66Z
