PRODUCT DESCRIPTION
Rainfall is captured in the collector funnel and is directed through a delivery pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through its center and has a preset calibration to tip for 0.2 or 0.3mm of rainfall. When the bucket is full, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse signal to the data logger or electronic counter. Through this tipping seesaw action, the other side of the bucket is aligned to receive the flow from the delivery pipe. This recording and tipping cycle continues with rainfall.
SPECIFICATIONS
| Item | Specification |
| Collector | 112*80mm |
| Measured rainfall intensity | Max: 4mm/min |
| Resolution | 0.2mm or 0.3mm |
| Accuracy(2mm/min) | ±4% |
| Maximum load voltage | 30VDC(pulse output) |
| Maximum load current | 20mA |
| Output | Pulses(reed switch) |
| Connector | RJ11 or direct line |
| Operating temperature | 0-60°C @0%-100%RH |
| Main material | ABS |

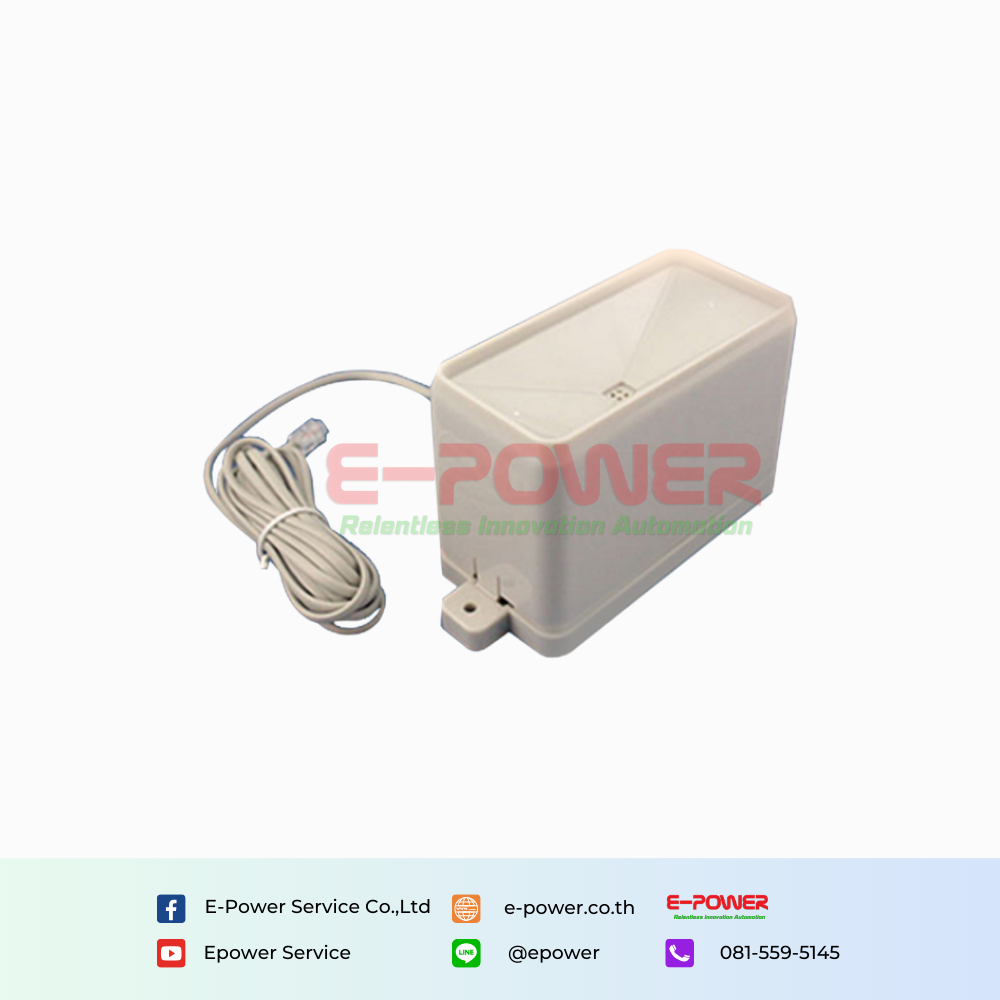

Product Catalogue: Rika RK400-11 Rainfall Sensor
