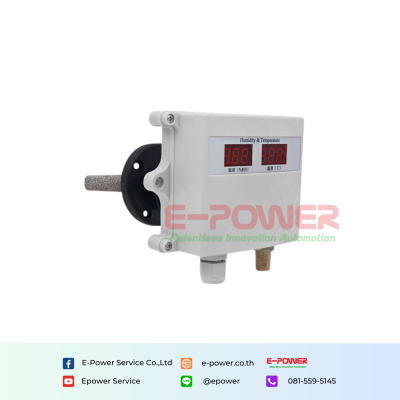

Renke RS-WS-SMG-EX LCD Duct Temperature and Humidity Sensor

Product Description

This LCD duct temperature sensor is an upgraded version of the RS-WS-9TH-EX duct temperature sensor. It has an LCD display that can display the measured temperature and humidity values in real-time.

1.Multi-output type selected
2.Long-life design
3.High stability
4.Excellent quality and stable measurement
5.IP-65 housing
6.Analog output and RS485
7.Alarm output
8.Can be used for HVAC (Heating, Ventilation, and Air conditioning)
9.With the measurement unit imported from Switzerland, the measurement is accurate. A dedicated analog circuit is used with a wide range of applications. Power supply from 10~30V wide voltage range, complete specifications, and easy installation. It can be applied to both four-wire and three-wire connections.

Parameters

Power supply: 10-30VDC
Measuring range: -40°C~+80°C, 0%RH-100%RH
Accuray: ±0.5°C (25°C), ±3%RH(5%RH~95%RH,25°C)
Long-term stability: Temperature:0.1°C/y
                                    Humidity: 1%RH/y
Response time: Temperature: 25s(1m/s wind speed)
                             Humidity: 8s (1m/s wind speed)
Output signal: RS485 or 4-20ma,0-5V,0-10V

Product Catalogue: Renke Catalogue
