Product Description

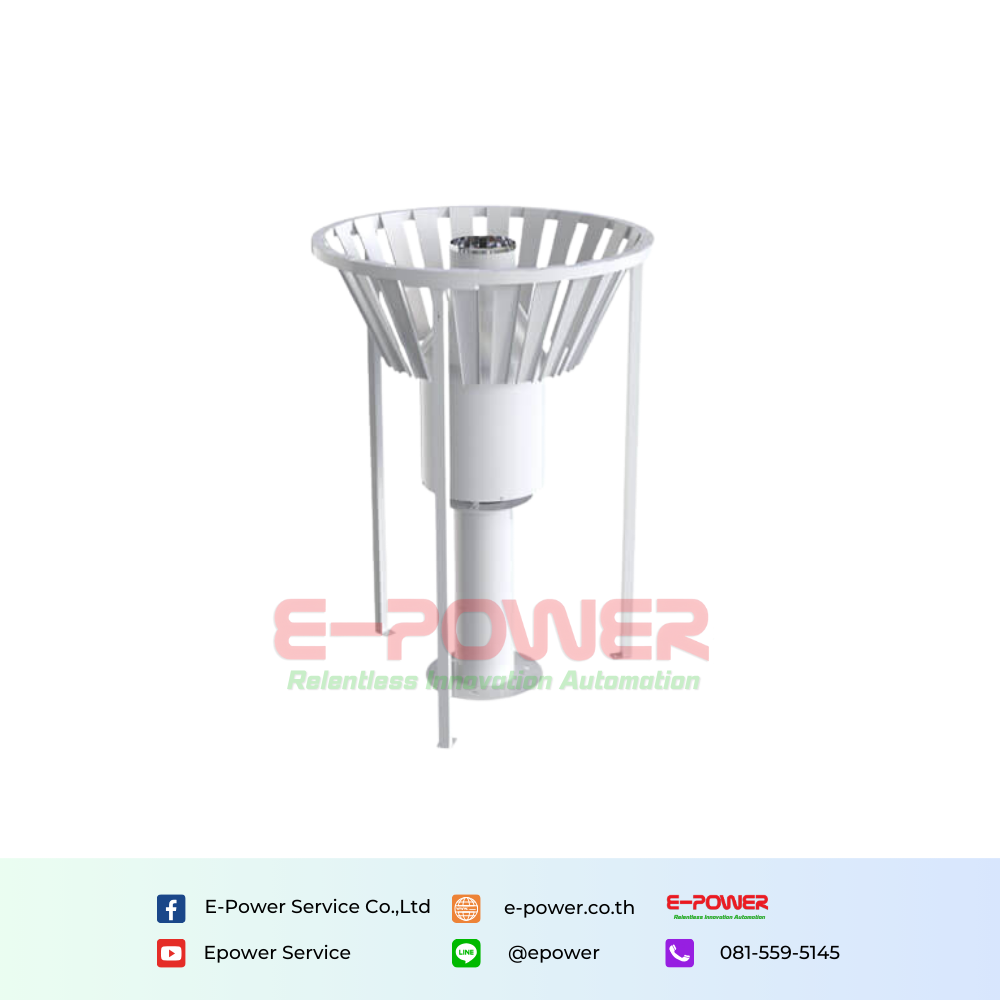

The weighing rain gauge is a meteorological instrument that automatically measures precipitation based on the principle of weighing. It uses high-precision load sensors to measure solid, liquid, or mixed-phase precipitation. Our weighing rain gauge can output data such as precipitation intensity and cumulative precipitation. Its real-time precipitation monitoring range is from 6 to 1800 mm/h, making it suitable for various weather conditions such as light rain, heavy rain, or heavy snow. For cold regions, an optional automatic heating function is available to prevent the water inlet from freezing or becoming blocked by snow due to low temperatures. It can be widely used in meteorology, agriculture, water conservancy, and other fields.
Product Feature
1. Optional heating function for measuring snowfall and avoiding freezing problems in winter.
2. With automatic drainage function, when the water volume reaches 80% of the total range, the weighing rain gauge starts to drain automatically.Parameters
Power supply | 12V DC |
Power consumption | 0.15W (DC12V), heating power 30W (optional, power supply DC12V) |
Measure range | 0~1000mm |
Resolution | 0.1mm |
Accuracy | ±0.2mm, 10mm; ±2%, >10mm |
Working environment | -35°C~+65°C, 0%RH~95%RH non-condensing |
Output signal | RS485/pulse |
