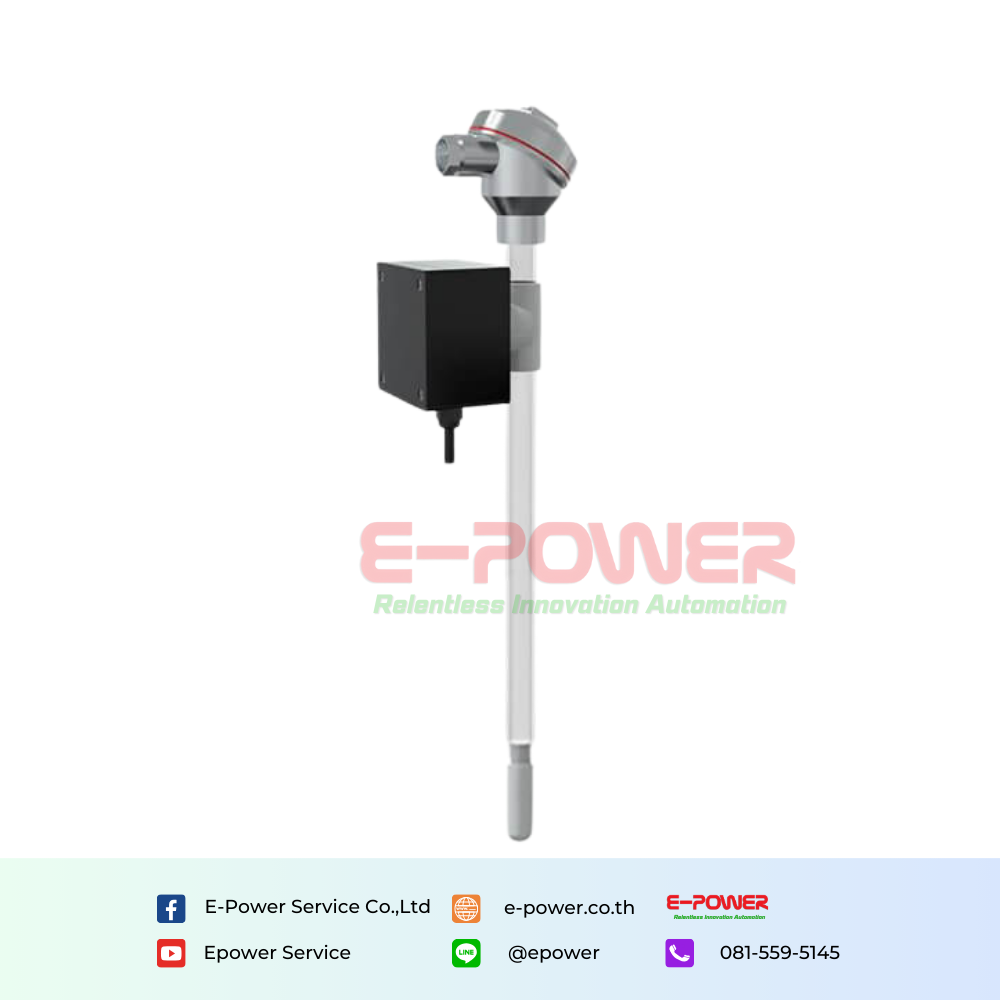

Renke Soil Tensiometer

Product Description

This soil tensiometer is a common device used for measuring soil moisture in agricultural irrigation, providing growers with a cheap and reliable method of measuring soil moisture. The measurement process is not affected by soil salinity and does not require on-site calibration, which is very convenient. Our RS-TRZL-1-EX soil tension meter has measuring depths of 15cm, 30cm, 45cm, 60cm, 75cm, 90cm, 105cm, 120cm, etc., and supports customer customization. The overall appearance is composed of high-quality transparent PVC pipes and clay heads, which can visually display the soil moisture content. Renke soil tension sensor has two output types, RS485 and analog. The analog output is 4-20ma.

Product Features

1. The shell is made of transparent PVC plastic pipe, which can directly observe the water level, has a fast response speed, and effectively perceives the soil environment.

2. The high-quality clay head is used, which is fast and airtight and has high sensitivity.
3. Not affected by salt ions in the soil, agricultural activities such as chemical fertilizers, pesticides, and irrigation will not affect the measurement results, and the data is accurate.
4. Support 10-24V wide voltage power supply, support standard Modbus-RTU485 communication mode, the longest communication is 2000 meters, and also support 4~20mA current signal output.

Parameters
