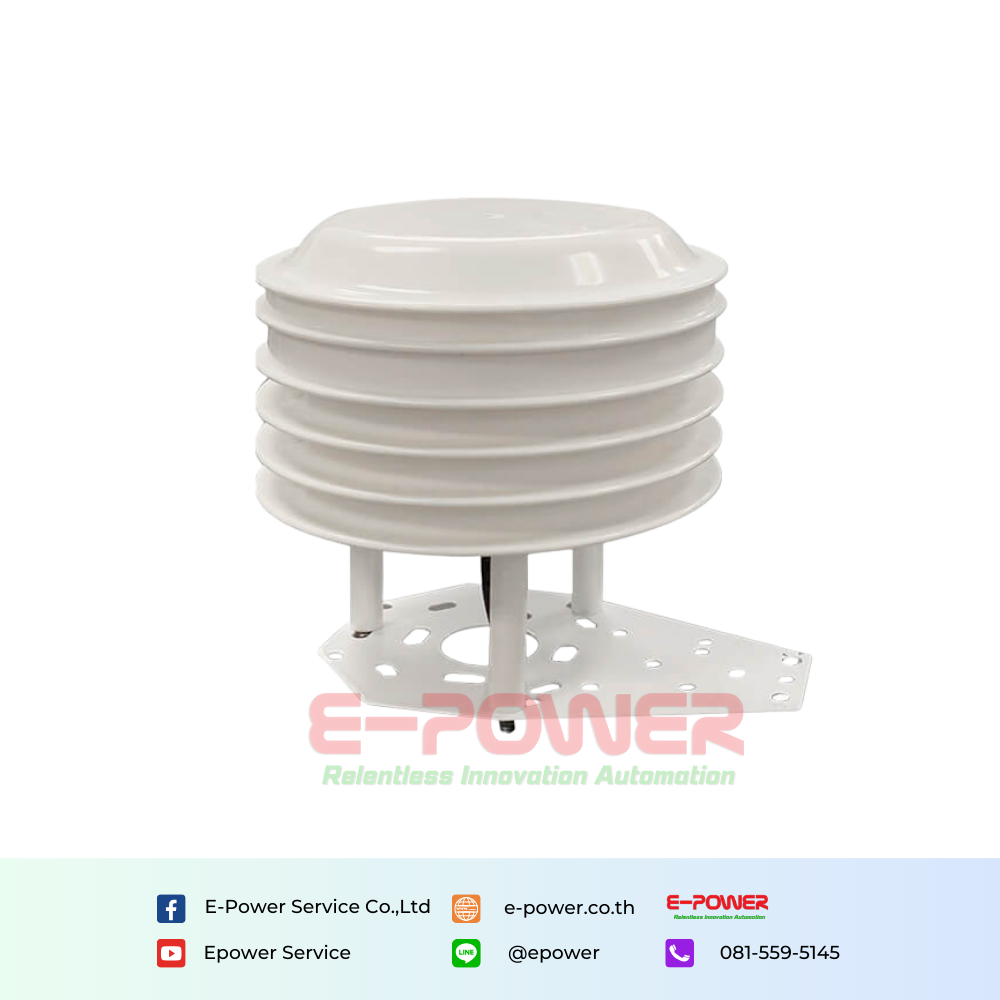

Renke Solar Radiation Shield
Product Description
The outdoor solar radiation shield is a high-quality product that can protect the sensor from the weather and avoid errors caused by solar radiation and precipitation, thereby ensuring data accuracy. It is suitable for different environmental sensors, such as temperature, humidity, air pressure, noise, light, CO2, PM2.5, PM10 sensors, etc. This solar radiation shield has the characteristics of sturdiness, high flexibility, low thermal conductivity, and UV resistance, making it widely suitable for outdoor harsh environments.
Product Feature
1. Improve measurement accuracy by shading and allowing air circulation.
2. High protection grade IP68, durable waterproof material, can be used normally in bad weather.
3. Good compatibility, multiple sensor modules can be stored inside, so a variety of meteorological parameters can be measured.
4. The integrated bracket and keyhole are easy to install and can be installed on flat and curved surfaces.
Parameters
| DC power supply | 10-30VDC | |
| Maximum power consumption | RS485Output | 0.8W |
| Measure Range | Temperature | -40°C~+120°C |
| Humidity | 0%RH~99%RH | |
| Illumination | 0~20WLux | |
| Atmospheric pressure | 0-120Kpa | |
| Noise | 30dB~120dB | |
| PM10 PM2.5 | 0-1000ug/m3 | |
| CO2 | 0-5000ppm | |
| Accuracy | Temperature | ±0.5°C（25°C） |
| Humidity | ±3%RH(5%RH~95%RH,25°C) | |
| Illumination | ±7%(25°C) | |
| Atmospheric pressure | ±0.15Kpa@25°C 101Kpa | |
| Noise | ±3db | |
| PM2.5 | ±3%FS(@100μg/m3,25°C,50%RH) | |
| CO2 | ±(50ppm+ 3%F·S) @(25°C,400~5000ppm) | |
| Long-term stability | Temperature | 0.1°C/y |
| Humidity | 1%/y | |
| Illumination | 5%/y | |
| Atmospheric pressure | -0.1Kpa/y | |
| Noise | 3db/y | |
| PM10 PM2.5 | 1ug/m3/y | |
| CO2 | 30ppm/y | |
| Types of plates | 4, 6, 8, 12(other plates can be customized) | |
| Material | Special engineering plastics against radiation & Stainless steel screw | |
| Install accessories(attached) | Stainless steel bracket | |
| Operating temperature | -40°C-+75°C | |
