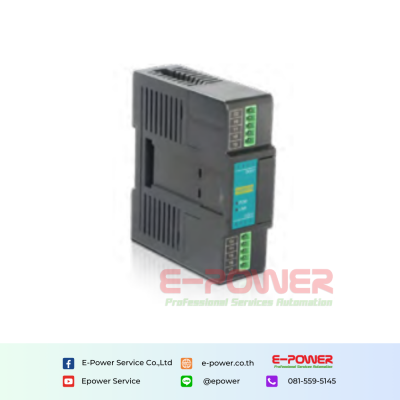

Temperature & Humidity Modules
Classic PLC Modules : Temperature & Humidity Modules
Product details
| Ethernet Model | Model | Specification | ||
| 24V DC | 24V DC | Sensor Type | Conversion Accuracy | Communication |
| H04DT | 4 Channels DS18B20, RW1820 temperature sensor, DS1990 sensor or SHT1x, SHT7x temperature & humidity sensor | 9~12 bits | ||
| H32DT | 32 Channels DS18B20, RW1820 temperature sensor, DS1990 sensor | 9~12 bits | RS485, support remote IO function | |
| H04RC | 4 Thermal resistance | 16 bits | RS485, support remote IO function | |
| H04TC | 4 Thermal resistance | 16 bits | RS485, support remote IO function | |
| H08TC | 8 Thermocouple | 16 bits | RS485, support remote IO function | |
| H08RC-e | H08RC | 8 Thermal resistance | 16 bits | RS485, support remote IO function |
- Can be used as extension module for any Haiwell PLC host;
- Modules with RS485 port can be use as remote I/O;
- Thermal Resistance kinds: PT100,PT1000, Cu50,Cu100;
- Thermocouple kinds: S, K, T, E, J, B, N, R, Wre3/25, Wre5/26, [0,20]mV, [0,50]mV, [0,100]mV;
- Expansion modules with Ethernet port and RS458 port, can be remote IO unit by distributed installation.
