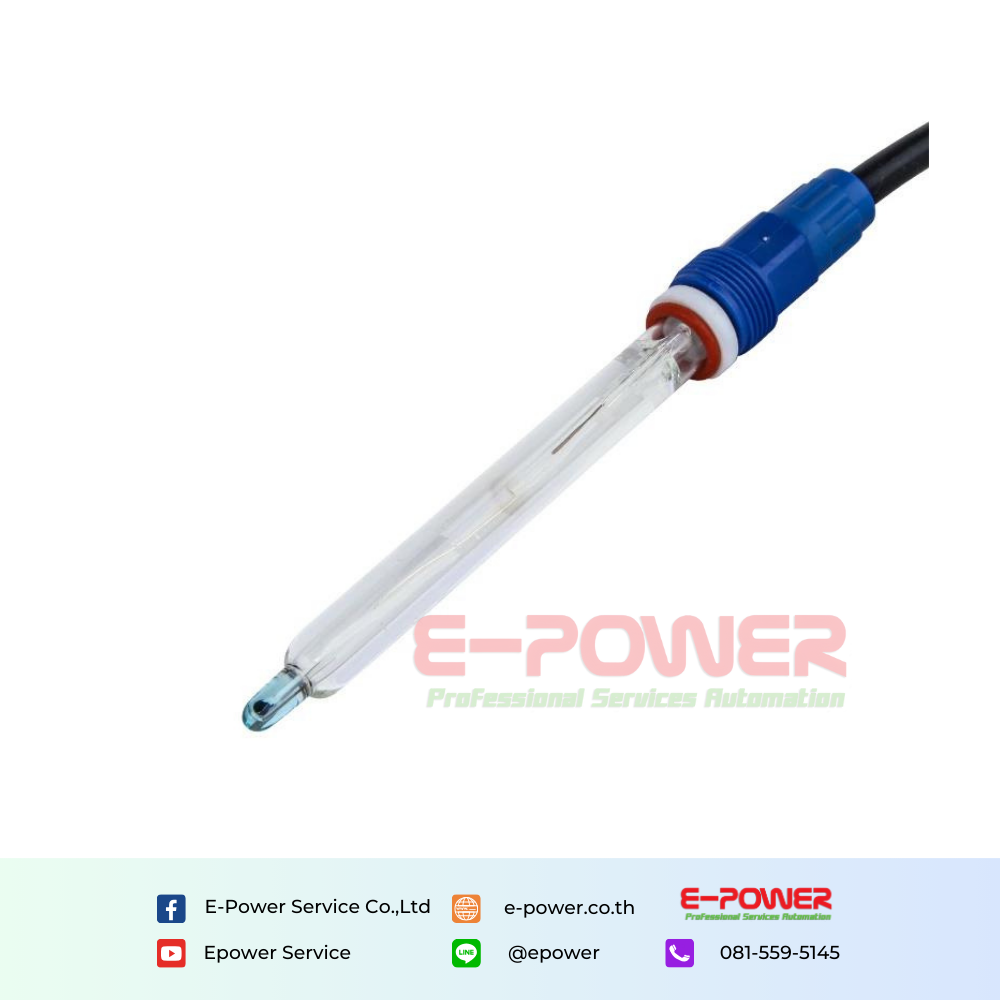

SUP-PH5018 Glass pH sensor

SUP-PH5018 glass pH sensor is widely used in wastewater treatment and fields including mining and smelting, papermaking, paper pulp, textiles, petrochemical industry, process of semiconductor electronic industry and downstream engineering of biotechnology.

Quantity

Categories : Sensor , Liquid analysis , pH sensor and meter

Brands :Supmea

Product description

Characteristics

Zero potential point: 7 ± 0.5 pH
Conversion coefficient: > 98%
Installation size: Pg13.5
Pressure: 0 ~ 4 Bar at 25 ํC
Temperature: 0 ~ 100 ํC for general cables

Specification

Product	Glass pH sensor
Model	SUP-PH5018
Measurement range	0-14 pH
Zero potential point	7 ± 0.5 pH
Slope	> 98%
Membrane resistance	<250ΜΩ
Practical response time	< 1 min
Salt bridge	Porous ceramic core/ porous Teflon
Installation size	Pg13.5
Heat resistance	0 ~ 100 ํC
Pressure resistance	0.25MPa
Temperature compensation	NTC10K/Pt100/Pt1000
