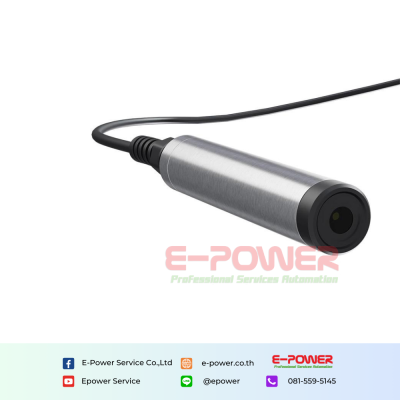

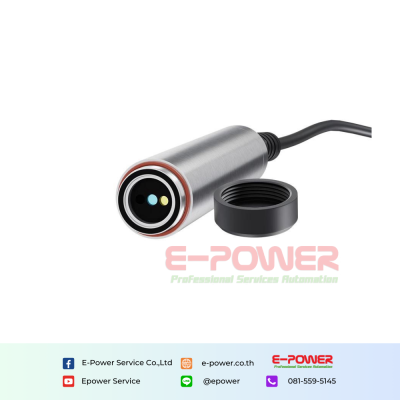

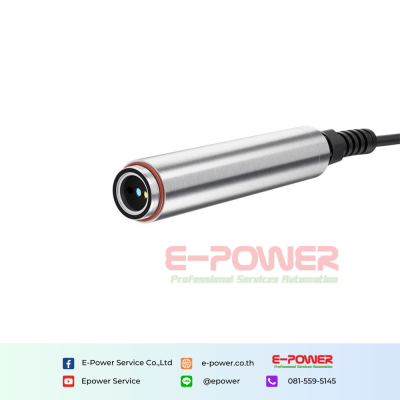

SUP-DO7017 Optical dissolved oxygen sensor

SUP-DO7017 Optical dissolved oxygen sensor

DO7017 Optical dissolved oxygen sensor is widely used in DO on-line monitoring of various technological processes such as regulating pools, biochemical ponds, and effluent in sewage treatment plants; DO on-line monitoring in waterworks, surface water, water in various industrial production processes, aquaculture and other industries.

Quantity

Categories : Sensor , Liquid analysis , Oxygen sensor and meter

Brands :Supmea

Product description

Characteristics

Range: 0.00 to 20.00 mg/L
Accuracy:3%
Resolution: 0.01
Signal interface: Modbus RS-485

Specification

Product	Dissolved Oxygen sensor
Model	SUP-DO7017
Accuracy	Dissolved oxygen: measured value ±3% or ±0.3mg/L Temperature: ±0.5°C
Measure range	Dissolved oxygen: (0~20) mg/L or 0~200% saturation Temperature: (0~45)°C
Resolution	0.01
Power supply	(10-25) VDC
Operating temperature	0°C to 45°C (unfrozen)
Stocking temperature	-15°C to + 60°C
Signal interface	Modbus RS-485
Repeatability	±0.3
Ingress protection	IP68/NEMA6P
Material	Stainless steel 316L
Maximum pressure	0.1 MPa
Cable	10m (standard),100m(optional)
