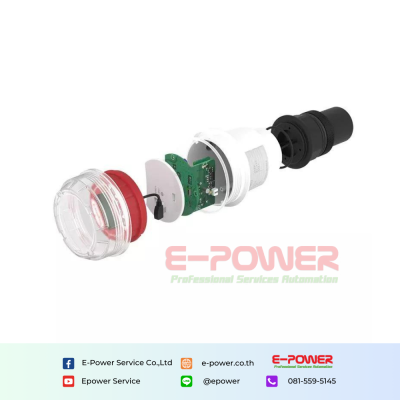

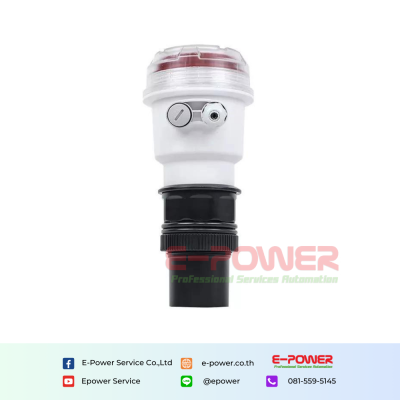

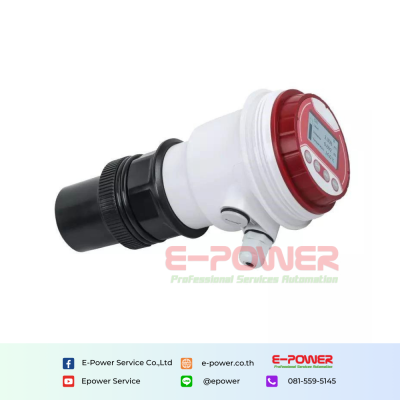

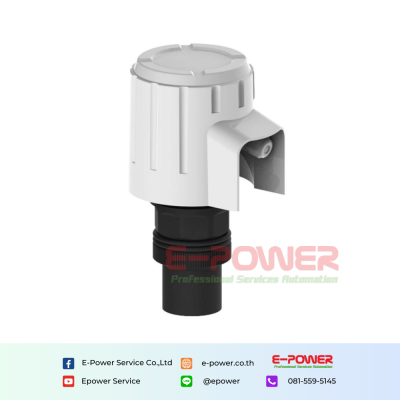

SUP-MP-C Ultrasonic level transmitter

SUP-MP-C Ultrasonic level transmitter is a non-contact, high reliability, cost-effective, easy to install and maintain liquid level/material level measure instrument. It can meet most liquid level/level measurement requirements without contacting the measured medium. It is a new generation of ultrasonic level gauge with completely independent property rights of our company.

Quantity

Categories : Sensor , Level , Ultasonic level transmitter

Brands :Supmea

Product description

Characteristics

Measure range: 0 ~ 15m
Blind zone: 0.6m
Accuracy: 0.3%F.S, 0.5%F.S
Power supply: (18~28) VDC

Specification

Product	Ultrasonic level transmitter
Model	SUP-MP-C
Measure range	5, 10m, 15m (optional)
Blind zone	<0.4m (5m, 10m) 0.6m(15m)
Accuracy	±0.3%FS, ±0.5%FS
Display	Monochrome LCD
Output (optional)	4-20mA RL>600Ω(standard) RS485 2 relays
Measuringvariable	Level/Distance
Power supply	18-28 VDC
Temperature range	Converter: -20-60 Sensor: -20-80
Ingress protection	Converter:IP65 Sensor:IP68
Huminity range	10%-85% RH (no condensation)
Installation	Thread (Standard)
Communication	RS485
Alarm	2 relays
