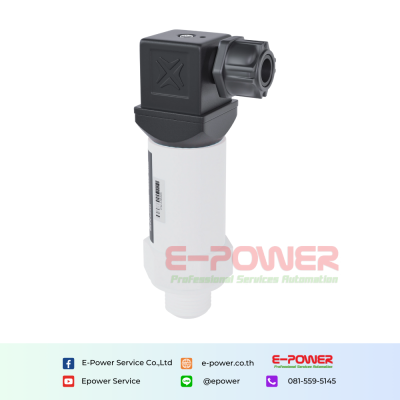

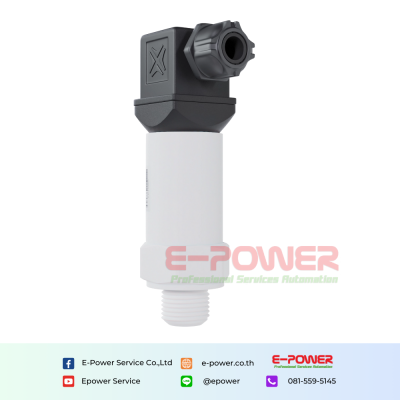

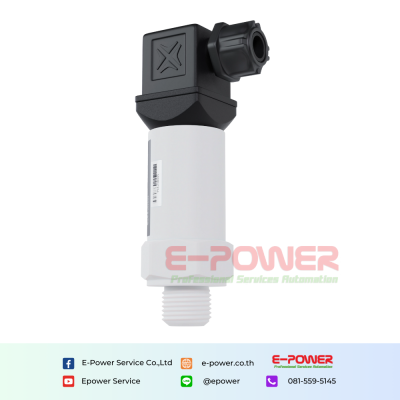

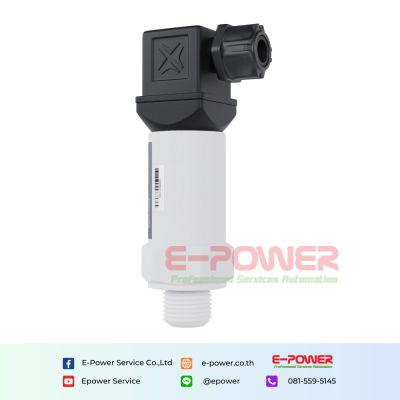

SUP-P302-B Anti-corrosion pressure transmitter

SUP-P302-B Anti-corrosion pressure transmitter

Our Anti-corrosion pressure transmitter is a specialized type of Water Pressure Sensor that is designed to resist corrosion and provide accurate pressure readings in harsh environments.

Quantity

Categories : Sensor , Pressure , Pressure transmitter

Brands :Supmea

Product description

Characteristics

Pressure type: Gauge pressure, absolute pressure, sealed pressure
Accuracy: 0.5%
Measuring range: -0.1MPa...0~10kPa...2MPa

Specification

Product	Level transmitter
Model	SUP-P302-B
Pressure type	Gauge pressure, absolute pressure, sealed pressure
Accuracy	0.5%
Measuring range	-0.-0.1 MPa... 0~10kPa2MPa
Output and power supply range	(4~20) mA output (10~32) V (0~10) V output (12~32) V (0~5) V, (1~5) V, RS485 output (8~32) V (4~20) mA output with LCD 4-digit display head (17~32) V RS485 output with 8-segment digital tube 4-digit display head (5~28) V
Compensation temperature	(0~70)°C
Working temperature	(-20~85)°C
Medium temperature	(-20~85)°C
Storage temperature	(-40~85)°C
Temperature drift	±3%FS
Transmission output	(4~20) mA
Overload pressure	200%FS
Long-term stability	±0.5%FS/year
Response time	Current, voltage output pressure 10ms (up to 90% FS) RS485 output type pressure 100ms (up to 90% FS)
Insulation resistance	20MΩ/250VDC
Dielectric strength	50Hz, 500VAC
Ingress protection	IP65
Load resistance	(4~20) mA output: load resistance (U-10V)/0.02A, U is the supply voltage (4~20) mA output with display: load resistance (U-14V)/0.02A, U is the supply voltage Voltage output: load resistance 5kΩ
