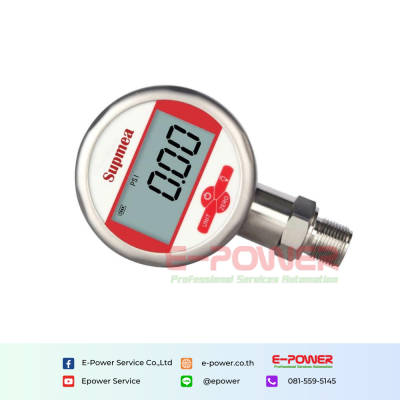

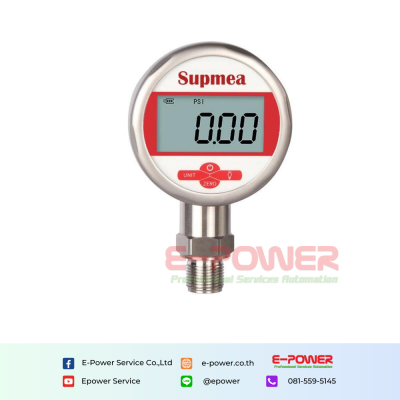

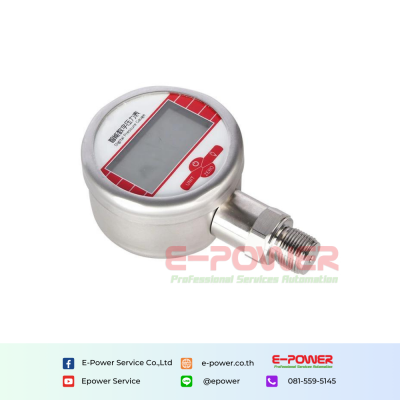

SUP-Y190 Pressure gauge battery power supply
SUP-Y190 pressure gauge is with battery power supply, high accuracy up 0.5% FS, battery power supply, backlight etc. The pressure unit can be changed wthin Mpa, PSI, Kg.F/cm aquared, bar, Kpa. Widely used in the industry application.
Quantity
Product description
Characteristics
- Range: -0.1~ 0 ~ 60MPa
- Resolution: 0.5%
- Dimensions: 81mm* 131mm* 47mm
- Power supply: 3V Battery powered
Specification
| Product | Pressure gauge | |
| Model | SUP-Y190 | |
| Measure range | -0.1···0···25MPa | |
| Indication resolution | 0.5%FS | |
| Dimensions | 65mm*99mm*38mm | |
| Ambient temperature | -10 ~ 70°C | |
| Tread type | M20*1.5, M14*1.5, G1/2, G1/4 or customized | |
| Pressure type | Gauge pressure; Absolute pressure | |
| Measure medium | Liquid; Gas; Oil etc | |
| Pressure overload | 0.035~10MPa，150%FS 10~60MPa，125%FS | |
| Power supply | 3V Battery powered | |
