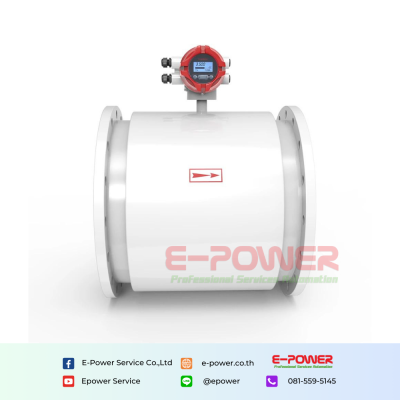

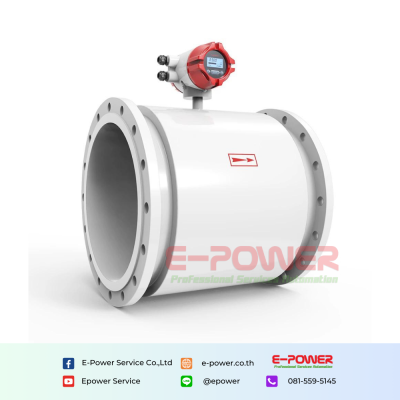

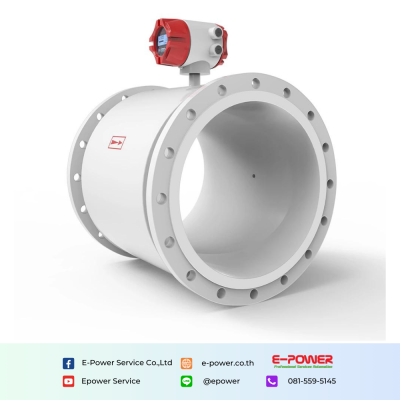

SUP-LDG Carbon steel body electromagnetic flow meter

SUP-LDG Carbon steel body electromagnetic flow meter

SUP-LDG Electromagnetic meters are a leading choice to deliver the performance and precision your applications require. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer

Quantity

Categories : Sensor , Flowmeter , Magnetic flowmeter

Brands :Supmea

Product description

Characteristics

Pipe diameter: DN15~DN1000
Accuracy: ±0.5%(Flow speed > 1m/s)
Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Recommended value: ＞30μS/cm
Turndown ratio: 1:100
Power supply: 100-240VAC，50/60Hz; 22-26VDC
Minimal Maintainice. Has no moving parts or flow obstructiions, which virtually eliminates maintenance and pressure drops

Specification

Product	Electromagnetic flow meter
Model	SUP-LDG
Diameter nominal	DN15~DN1200
Nominal pressure	DN15 - DN250, PN <1.6MPa DN300 - DN1000, PN <1.0MPa DN1200, PN <0.6 MPa Higher pressure can be customized
Accuracy	±0.5% F.S. (Flow speed > 1m/s); ±0.5% F.S.±2mm/s (Flow speed <1m/s)
Repetitiveness	0.16%
Liner material	Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA
Electrode material	316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
Medium temperature	Neoprene: -10+60°C Polyurethane: -10+60°C PTFE/FEP: -10+120°C PFA: -10+120°C
Power supply	85-245VAC，50/60Hz, 22VDC-26VDC
Structure type	Compact type, Remote type
Ingress protection	IP65, IP68(remote type only)
Product standard	JB/T 9248-2015
