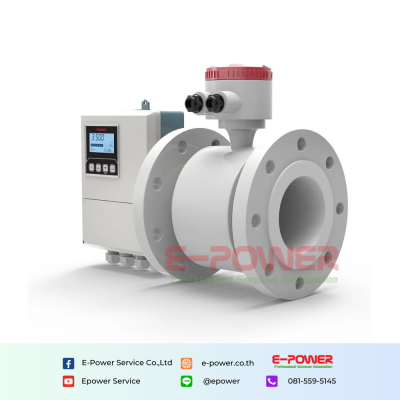

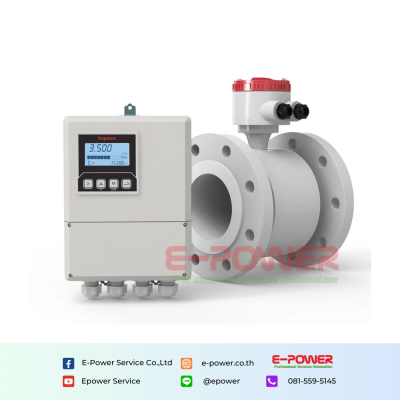

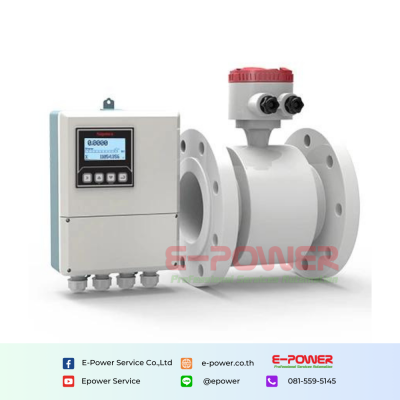

SUP-LDG Remote type electromagnetic flowmeter

SUP-LDG Remote type electromagnetic flowmeter

Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication.

Quantity

Categories : Sensor , Flowmeter , Magnetic flowmeter

Brands :Supmea

Product description

Characteristics

Pipe diameter: DN15~DN1000
Accuracy: ±0.5%(Flow speed > 1m/s)
Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Recommended value: ＞30μS/cm
Turndown ratio: 1:100
Power supply: 100-240VAC，50/60Hz; 22-26VDC
Minimal Maintainice. Has no moving parts or flow obstructiions, which virtually eliminates maintenance and pressure drops

Specification

Product	Electromagnetic flow meter
Model	SUP-LDG
Diameter nominal	DN15~DN1200
Nominal pressure	DN15 - DN250, PN <1.6MPa DN300 - DN1000, PN <1.0MPa DN1200, PN <0.6 MPa Higher pressure can be customized
Accuracy	±0.5% F.S. (Flow speed > 1m/s); ±0.5% F.S.±2mm/s (Flow speed <1m/s)
Repetitiveness	0.16%
Liner material	Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA
Electrode material	316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
Medium temperature	Neoprene: -10+60°C Polyurethane: -10+60°C PTFE/FEP: -10+120°C PFA: -10+120°C
Power supply	85-245VAC，50/60Hz, 22VDC-26VDC
Structure type	Compact type, Remote type
Ingress protection	IP65, IP68(remote type only)
Product standard	JB/T 9248-2015
