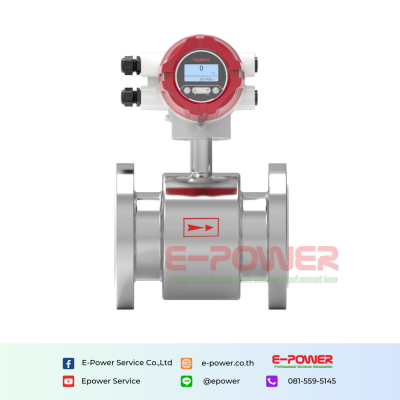

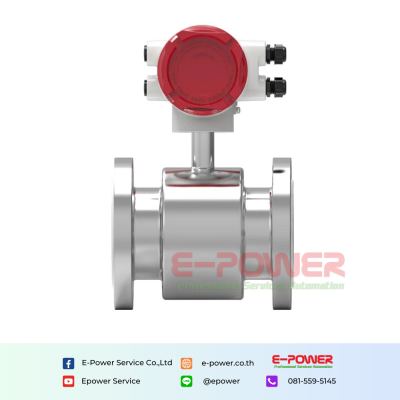

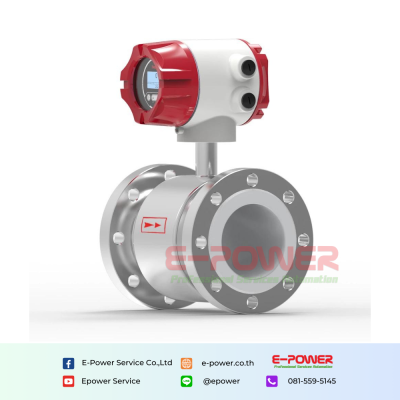

SUP-LDG Stainless steel body electromagnetic flowmeter

SUP-LDG Stainless steel body electromagnetic flowmeter

Magnetic flow meters operate under the principle of Faraday's Law of Electromagnetic Induction to measure liquid velocity. Following Faraday's Law, magnetic flowmeters measure the velocity of conductive liquids in pipes, such as water, acids, caustic, and slurries. In order of usage, magnetic flowmeter use in water/wastewater industry, chemical, food and beverage, power, pulp and paper, metals and mining, and pharmaceutical application.

Quantity

Categories : Sensor , Flowmeter , Magnetic flowmeter

Brands :Supmea

Product description

Characteristics

Accuracy: ±0.5%，±2mm/s(flowrate<1m/s)
Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Recommended value: ＞30μS/cm
Flange: ANSI/JIS/DIN DN10600
Ingress protection: IP65

Specification

Product	Electromagnetic flow meter
Model	SUP-LDG
Diameter nominal	DN15~DN1000
Nominal pressure	0.6~4.0MPa
Accuracy	±0.5%，±2mm/s(flowrate<1m/s)
Liner material	PFA,F46,Neoprene,PTFE,FEP
Electrode material	Stainless steel SUS316L, Hastelloy C, Titanium,
	Tantalum Platinum-iridium
Medium temperature	Integral type: -10°C~80°C
	Split type: -25°C~180°C
Ambient Temperature	-10°C~60°C
Electrical conductivity	Water 20μS/cm other medium 5μS/cm
Structure type	Tegral type, split type
Ingress protection	IP65
Product standard	JB/T 9248-1999 Electormagnetic Flowmeter
