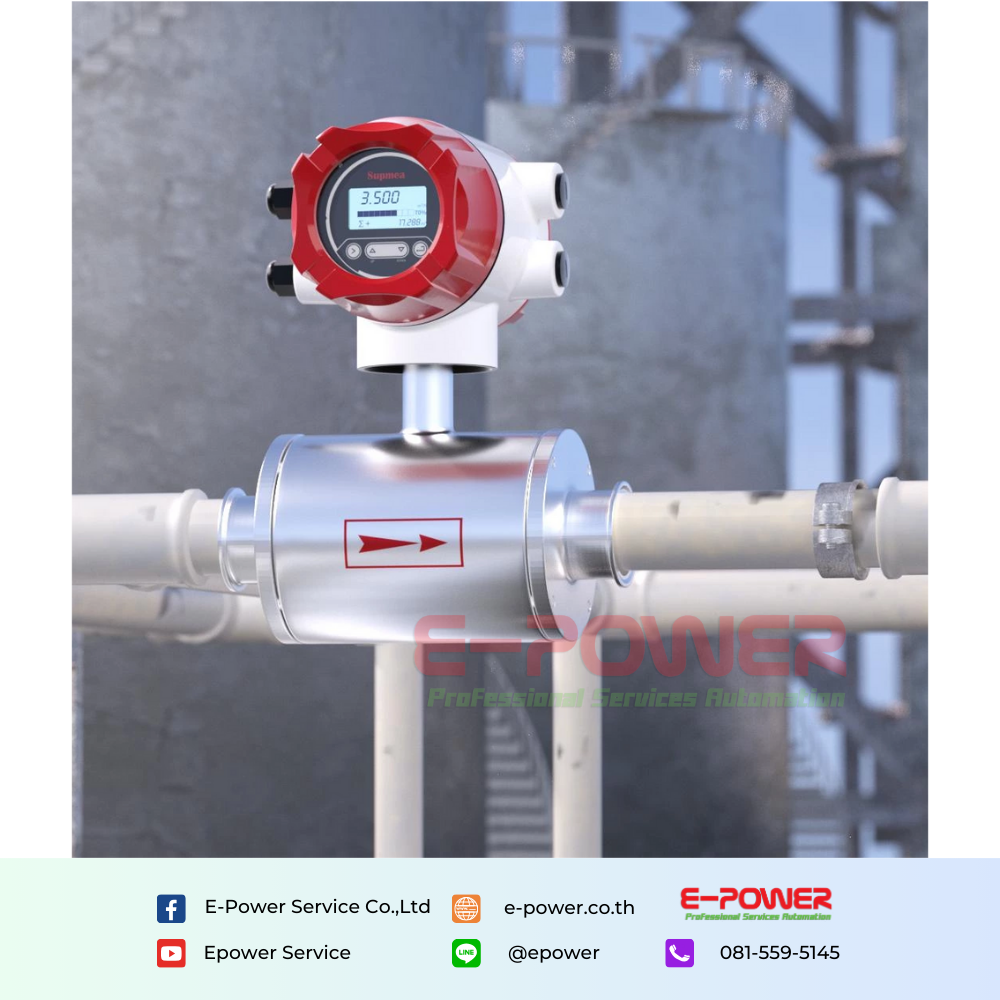

SUP-LDG Sanitary electromagnetic flowmeter for food processing

SUP-LDG Sanitary electromagnetic flowmeter for food processing

Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication.

Quantity

Categories : Sensor , Flowmeter , Magnetic flowmeter

Brands :Supmea

Product description

Characteristics

Accuracy: ±0.5%，±2mm/s(flowrate<1m/s)
Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Recommended value: ＞30μS/cm
Flange: ANSI/JIS/DIN DN10600
Ingress protection: IP65

Specification

Product	Electromagnetic flow meter
Model	SUP-LDG
Diameter nominal	DN15~DN1000
Nominal pressure	0.6~4.0MPa
Accuracy	±0.5%，±2mm/s(flowrate<1m/s)
Liner material	PFA,F46,Neoprene,PTFE,FEP
Electrode material	Stainless steel SUS316L, Hastelloy C, Titanium,
	Tantalum Platinum-iridium
Medium temperature	Integral type: -10°C~80°C
	Split type: -25°C~180°C
Ambient Temperature	-10°C~60°C
Electrical conductivity	Water 20μS/cm other medium 5μS/cm
Structure type	Tegral type, split type
Ingress protection	IP65
Product standard	JB/T 9248-1999 Electormagnetic Flowmeter
