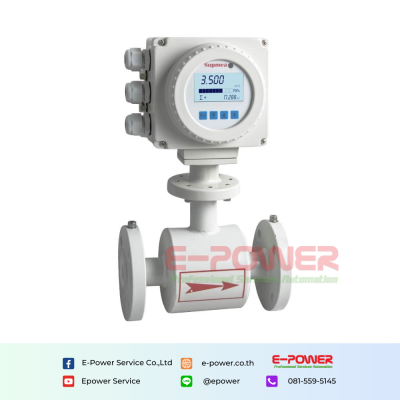

FMC240 Electromagnetic Flowmeter Measuring Tap Water

FMC240 Electromagnetic Flowmeter Measuring Tap Water

FMC240 Electromagnetic meters are a leading choice to deliver the performance and precision your applications require. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer

Quantity

Categories : Sensor , Flowmeter , Magnetic flowmeter

Brands :Supmea

Product description

Characteristics

Accuracy: ±0.5%(Flow speed > 0.5m/s)
Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Recommended value: ＞30μS/cm
Strong anti-interference ability, under normal grounding conditions, the flow value can be displayed stably
With lightning protection capability, it can be used in lightning-prone areas

Specification

Product	Electromagnetic flowmeter
Model	FMC240
Diameter nominal	DN15~DN1000
Nominal pressure	DN15 - DN250, PN <1.6MPa DN300 - DN1000, PN <1.0MPa
Accuracy	±0.5% F.S. (Flow speed > 0.5m/s)； ±0.5% F.S.±2mm/s（Flow speed <0.5m/s）
Repetitiveness	0.16%
Liner material	Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA
Electrode material	316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
Medium temperature	Neoprene: -10+70°C Polyurethane: -10+60°C PTFE/FEP: -10+120°C PFA: -10+120°C
Power supply	220VAC, 24VDC
Structure type	Compact type, Remote type
Ingress protection	IP65, IP68(remote type only)
Product standard	JB/T 9248-2015
