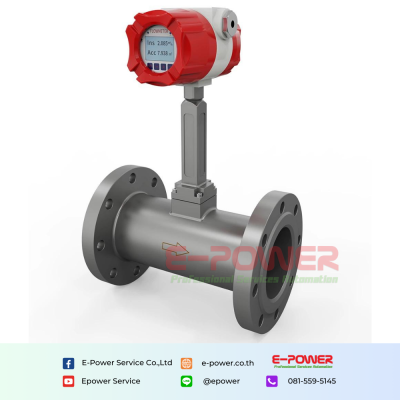

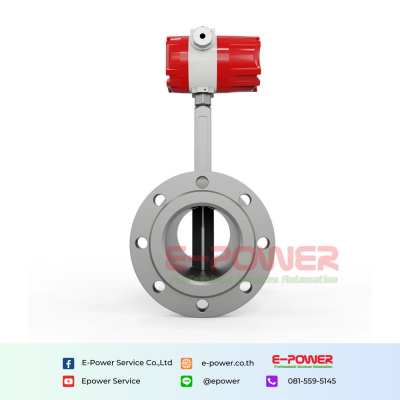

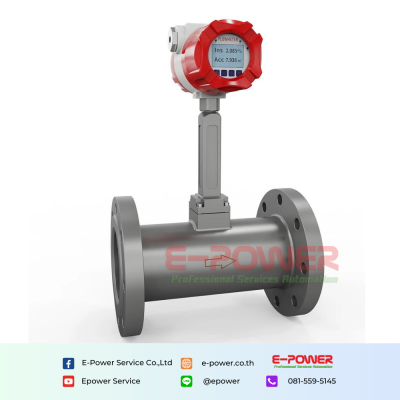

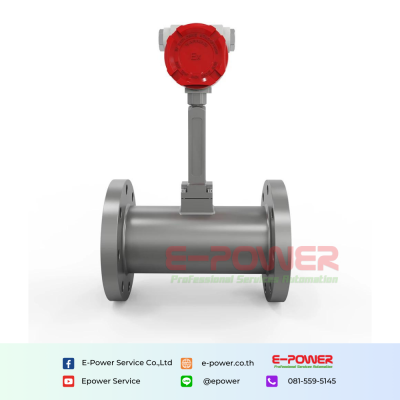

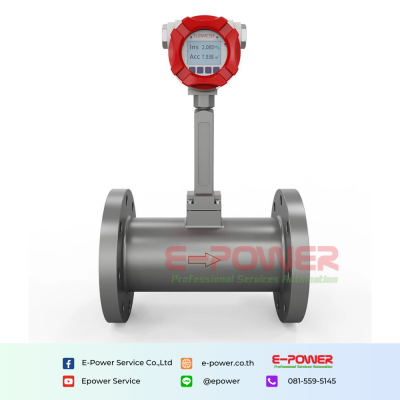

SUP-LUGB Vortex flowmeter without temperature & pressure compensation

SUP-LUGB Vortex flowmeter without temperature & pressure compensation

The battery-powered electromagnetic flow meter converter adopts internal battery power supply without external power supply. It is suitable for working conditions where the field power grid cannot be reached and the power grid is difficult to lay. It is especially suitable for the monitoring, metering and settlement of the tap water supply system.

Quantity

Categories : Sensor , Flowmeter , Vortex flowmeter

Brands :Supmea

Product description

Characteristics

Pipe diameter: DN15-DN300
Accuracy: 1.0% 1.5%
Range Ratio: 1:8
Ingress protection: IP65

Specification

Product	Vortex flowmeter
Model	SUP-LUGB
Diameter nominal	DN15~DN300
Installation	Wafer connection: DN15-DN300(priority PN2.5MPa); Flange connection: DN15-DN50(priority PN2.5MPa);DN65-DN200(priority PN1.6MPa);DN250-DN300(priority PN1.0MPa）
Accuracy	Gas without compensation: DN15-DN25--1.5%, DN32-DN200--1.0%, DN250-DN300--1.5%
Range Ratio	Gas density:1.2kg/m3, Range ratio: 8:1
Medium Temperature	-20°C ~ +150°C、-20°C ~ +260°C、-20°C ~ +300°C
Output signal	4-20mA
Frequency	RS485 communication (Modbus RTU)
Power supply	24VDC±5% Li battery(3.6VDC)
Ingress protection	IP65
Body Materials	Stainless shell
Display	128*64 dot matrix LCD
