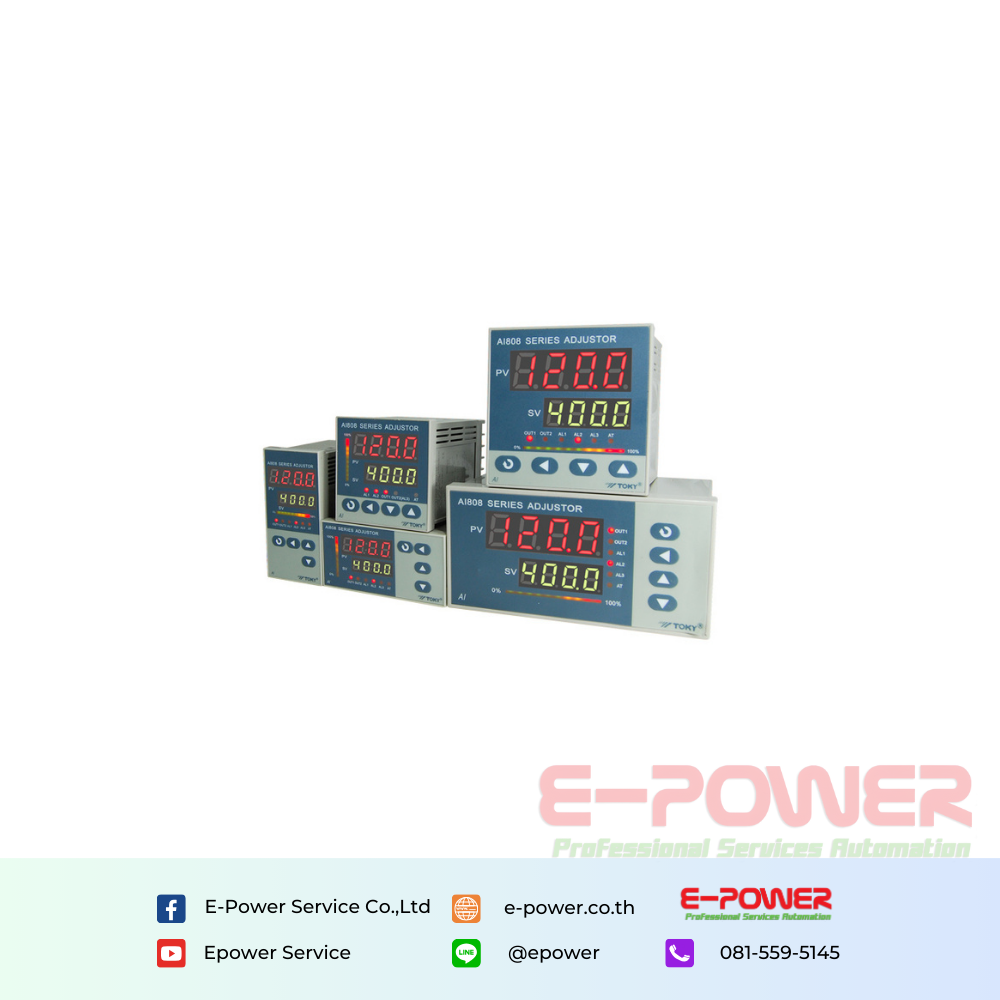

AI808P Series Intelligent Temperature Controller

Quantity

Categories : Temperature Controller , Toky , Temperature Controller

Brands :Toky

Product description

Features

TC / RTD / Analog signal universal input
With display, alarm, adjusting and communication function
Advanced Fuzzy algorithm & Two Degrees of Freedom PID Arithmetic
Optional control output, modularization design
Good anti-interference
Up to 50 programmable segments control
Color bar display

Model

Model Illustration

Model	OUT1 (Note 1)	OUT2 (Note 2)	Alarm (Note 3)	Communication
AI808P-4-RB10	Relay output	Relay output	1	No
AI808P-4-SB10	SSR output	Relay output	1	No
AI808P-4-DB10	4-20mA current output	Relay output	1	No
AI808P-4-RB18	Relay output	Relay output	1	RS485 (Modbus RTU)
AI808P-4-SB18	SSR output	Relay output	1	RS485 (Modbus RTU)
AI808P-4-DB18	4-20mA current output	Relay output	1	RS485 (Modbus RTU)

Model	OUT1 (Note 1)	OUT2 (Note 2)	Alarm (Note 3)	Communication
AI808P- _RC10	Relay output	Relay output	2	No
AI808P- _SC10	SSR output	Relay output	2	No
AI808P- _DC10	4-20mA current output	Relay output	2	No
AI808P- _RC18	Relay output	Relay output	2	RS485 (Modbus RTU)
AI808P- _SC18	SSR output	Relay output	2	RS485 (Modbus RTU)
AI808P- _DC18	4-20mA current output	Relay output	2	RS485 (Modbus RTU)

Note:
OUT1: 4-20mA current output, load capacity: 600 max.
Relay output capacity: 3A/250V AC
SSR output capacity: 30mA/24V DC

OUT2: Can be workable just under heating-cooling c ontrol(OT=3); under other control mode,
worked as alarm 3 (For size:48*48 worked as alarm 2)
Relay output capacity: 1A/250V AC.

OUT3: Alarm 3:
Relay output capacity: 1A/250V AC

Main Technical Parameters

Whole controller parameters

Power supply	AC/DC 100-240V
Total current	<30mA 220VAC
Ambient temperature	0-50°C
Ambient humidity	45-85%RH
Measurement accuracy	±0.3%FS±3digits 25°C
Control mode	ON/OFF control PID heating control PID cooling control PID heating & cooling control
Communication function	RS485 communication interface, MODBUS protocol
Panel protection level	IP65
Temperature excursion	is less than or equal to 0.01%FS/°C
Dielectric strength	Between the connectors of power supply to relay output, power supply to signal input, relay output to signal input is greater than or equal to 2000VDC; Between the low voltage signal isolated with each other 600VDC

Input parameter table

No	Input type	Measuring range	Resolution	Input impedance
0	K type thermocouple	-50~1300°C	1°C	>100KΩ
1	J type thermocouple	-50~1200°C	1°C	>100KΩ
2	E type thermocouple	-50~1000°C	1°C	>100KΩ
3	T type thermocouple	-50~400°C	1°C	>100KΩ
4	B type thermocouple	600~1800°C	1°C	>100KΩ
5	R type thermocouple	-10~1700°C	1°C	>100KΩ
6	S type thermocouple	-10~1600°C	1°C	>100KΩ
7	N type thermocouple	-50~1200°C	1°C	>100KΩ
8	Reserved
9	PT100	-199.9~850.0°C	0.1°C	(0.2mA)
10	JPT100	-199.9~500.0°C	0.1°C	(0.2mA)
11	CU50	-50.0~150.0°C	0.1°C	(0.2mA)
12	CU100	-50.0~150.0°C	0.1°C	(0.2mA)
13	Linear voltage	0~50mV	0.01%FS	>100KΩ
14	Linear current	4~20mA	0.01%FS	<110Ω
15	Linear voltage	0~10V	0.01%FS	>100KΩ
16	Linear resistance	0~400Ω	0.01%FS	(0.2mA)
