Flexem F5-MD1600
24VDC Input: 16
Transistor Output: N/A
Enclosure Material: Engineering plastic
Programming Architecture: IEC61131-3

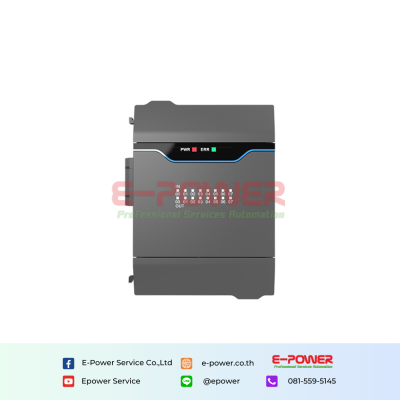

Flexem F5-MD1600, F5 series PLC digital I/O module, 16 inputs, multiple expansion module options available.
Quantity
Product description
Specs
Hardware
| 24VDC Input | 16 |
| Relay Output | N/A |
| Signal Indicator | Available |
| Power Supply | 24VDC -15%/+20%, maximum of 3.2W. Provided internally in the main unit, no external input required |
| Wiring Structure | Detachable terminal block |
| Usage | Cannot work independently, must be used in conjunction with FL5/FC5 series main units |
Environmental
| Operating Temperature | -10~60°C |
| Storage Temperature | -20~70°C |
| Environmental Humidity | 5~95%RH (non-condensing) |
Mechanical
| Installation | Directly installed on DIN 46277 rail (width 35mm) or fixed with screws |
| Dimensions | 66mm×90mm×83mm |
