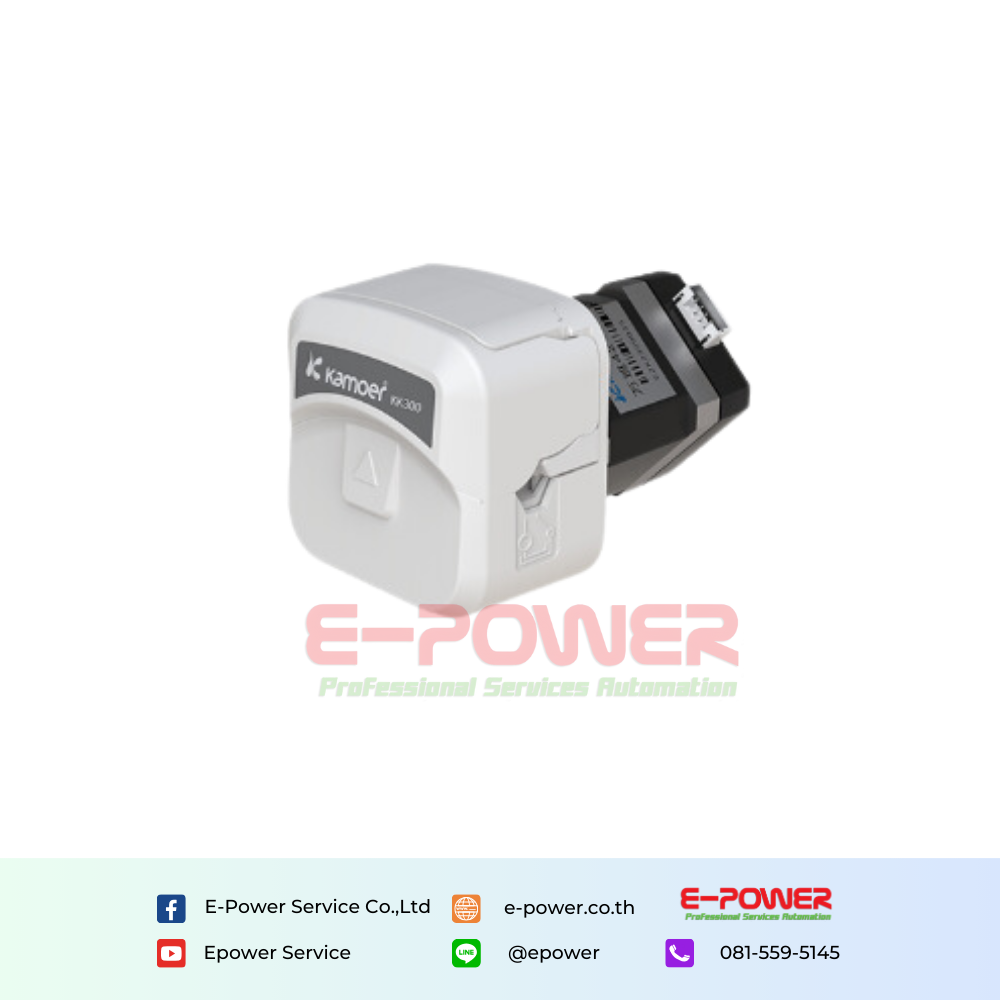

VIKIPAL-42 Peristaltic Pump

Product description

Technical Parameters

Specification	VIKIPAL-42-KK300-A	VIKIPAL-42-KK300-B	VIKIPAL-42-KK300-R	VIKIPAL-42-KK300-P
Operating voltage	DC 24V	DC 24V	DC 24V	DC 24V
Weight	About 557g	About 557g	About 557g	About 557g
Size	8211582mm	8211582mm	8211582mm	8211582mm
Maximum Power	48W	48W	48W	48W
Maximum Speed	400RPM	400RPM	400RPM	400RPM
Speed Control Resolution	0.1RPM	0.1RPM	0.1RPM	0.1RPM
Control Method	0~5V, 0~10V, 4~20mA	Rotary encoder control	RS485 control (Modbus protocol)	Pulse control
Motor Life	6000h	6000h	6000h	6000h
Tube code & size (mm)	13: 0.8x4.0, 14: 1.6x4.8, 19: 2.4x5.6, 16: 3.2x6.4, 40: 4.8x7.2	13: 0.8x4.0, 14: 1.6x4.8, 19: 2.4x5.6, 16: 3.2x6.4, 40: 4.8x7.2	13: 0.8x4.0, 14: 1.6x4.8, 19: 2.4x5.6, 16: 3.2x6.4, 40: 4.8x7.2	13: 0.8x4.0, 14: 1.6x4.8, 19: 2.4x5.6, 16: 3.2x6.4, 40: 4.8x7.2
Pump tube material	S: Silicone Tube, B: BPT	S: Silicone Tube, B: BPT	S: Silicone Tube, B: BPT	S: Silicone Tube, B: BPT
Flow rate (ml/min, @400rpm)	S13: 17, S14: 50, S19: 105, S16: 170, S40: 235, S25: 315, B13: 16, B14: 54, B19: 130, B16: 190	S13: 17, S14: 50, S19: 105, S16: 170, S40: 235, S25: 315, B13: 16, B14: 54, B19: 130, B16: 190	S13: 17, S14: 50, S19: 105, S16: 170, S40: 235, S25: 315, B13: 16, B14: 54, B19: 130, B16: 190	S13: 17, S14: 50, S19: 105, S16: 170, S40: 235, S25: 315, B13: 16, B14: 54, B19: 130, B16: 190
Reference Noise	65dB	65dB	65dB	65dB
Pump head	KK300, KCS, KCS3 and KPAS100 pump heads available	KK300, KCS, KCS3 and KPAS100 pump heads available	KK300, KCS, KCS3 and KPAS100 pump heads available	KK300, KCS, KCS3 and KPAS100 pump heads available
