รายละเอียดสินค้า

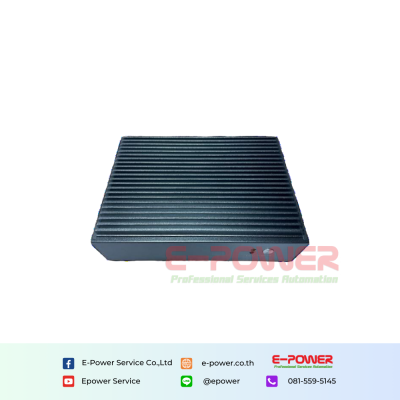

| Model | TABNNXF2E series |
| Module | Jetson NX 16GB |
| GPU | Volta, 384 CUDA-core and 48 Tensor cores, 1.1GHz, 21TOPS(INT8) |
| CPU | 6-core Carmel ARM v8.2 64bit CPU, 1.9GHz |
| Encode | H.265 (HEVC), H.264, VP9, 2x464 MP/sec (HEVC) 2x 4K @ 30 (HEVC), 6x 1080p @ 60 (HEVC), 14x 1080p @ 30 (HEVC) |
| Decode | H.265 (HEVC), H.264, VP9, VP8, MPEG-4, MPEG-2, VC-1 2x690 MP/sec (HEVC), 2x 4K @ 60 (HEVC), 4x 4K @ 30 (HEVC) 12x 1080p @ 60 (HEVC), 32x 1080p @ 30 (HEVC), 16x 1080p @ 30 (H.264) |
| Memory | 16GB 128bit LPDDR4, 59.7GB/S, 1600MHz |
| Storage | 16GB eMMC + TF card |
| Network | 2xGigaLAN(RJ45) |
| 1x4G(4G module), 1xWIFI(optional) | |
| Extend | 1xSIM card slot 1xMiniPCIE(USB2.0& PCIe single) |
| IO | 1xUSB3.0, 1xUSB2.0, 1xOTG, 1xRS485, 1xCAN, 4xGPIOs |
| Display | 1xHDMI2.0(TypeA) |
| Power IN | DC_IN 12V/40W, LAN PD power supply(optional) |
| LED | 1xRed LED(Power indication) 1xGreen LED(Controlled by GPIO) |
| MAX P | 22W(JP4.6.1) |
| Material | Aluminium |
| Radiator | Fin, without fan |
| Temp. O | -30°C-40°C |
| Fixed | Bracket installation |
| Colour | Iron grey |
| Weight | 650g(1300g with packaging) |
| Size | 160x99x45(mm) |
| Package | 290x250x90(mm) |
| OS | Ubuntu 18.04(NVIDIA customized system JP4.6.1) |
| Advantage | Scalable, Small size, light weight |
| Weakness | Small working temperature range |
