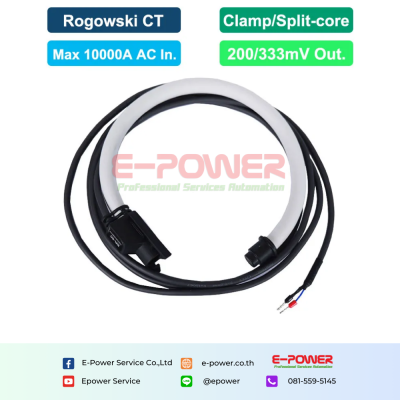

BR Series Rogowski Coil Flexible Current Transformer

Specification

• Measurement: Alternating Current (AC)

• Installtion: Clamp-on easy installation

• Primary Current Input: Max 10000A AC

• Secondary Current Output: 200mV/333mV

• Perforation Size: 90/150/200/300 mm


1. Series Overview

2. General Technical Specs

• Position Error: ±1%

• OA Output (Zero Drift): 1mV

• Phase Angle Error: 0.5°

• Linearity: ±0.2%

• Bandwidth: 1Hz~10kHz

• Operating Temperature: -40 ~ +80

• Storage Temperature: -50 ~ +90

• Flame Retardant: Thermoplastic rubber for wires and cables

• Shielding: 100% for coil, 100% for signal cable

• Insulation Voltage: Coil: 3000V; Signal cable: 300V
