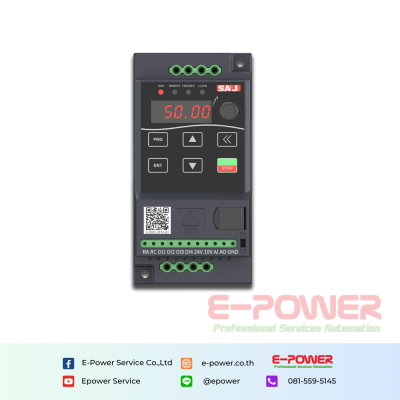

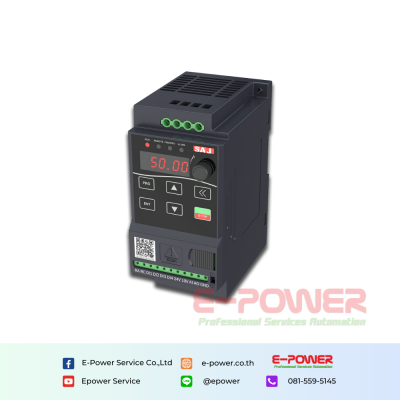

VM600G Series AC Drive
The VM600G AC Drive is a new simple VFD. Smaller size, easier commissioning and more adaptability make it easy to adjust and control various small mechanical equipment.
Single-phase 220V~0.75-2.2kW // Three-phase 380V~0.75-7.5kW
รายละเอียดสินค้า
Specification
| Item | Description | |
Control characteristic | Control mode | V/F control |
| Output frequency range | 0-1000Hz | |
| Starting torque | 0.5Hz/130% | |
| Carrier frequency | 0.6-15.0kHz | |
| Overload capacity | 150% rated current 60s, 180% rated current 1s | |
| Torque lift | Automatic torque lift/manual torque lift 0.1-30.0% | |
| I/O terminals | Analog input | 1 way |
| Digital input | 4 way | |
| Analog output | 1 way | |
| Relay output | 2.2kW(including) models below 1 normal open; For 4KW or more models, 1 channel is normally open and 1 channels is normally closed | |
| RS485 communication terminal | 1 integrated in the RJ45 cable port | |
| 10V power terminal | 1 way | |
| 24V power terminal | 1 way | |
| Basic functions | Run command channel | Three channels: ser operation panel, control terminal, and RS 485 communiction control, which can be switched in various ways |
| Frequency source | Digital set, panel potentionmeter set, analog voltage set, analog current set, RS485 communication set, switchable by many ways | |
| DC braking function | DC backing frequency 0-50 Hz, braking time: 0-60s Braking action current value: 0-150% | |
| V/F curve | Linear: 1.1-1.9 power: Square type; Customize V/F curves | |
| Simple PLC, multi-speed control | Up to 15 speed to achieve simple PLC operation | |
| Integrated PID | It is convenient to realize process control closed-loop control system | |
| Protection function | Input/ouput phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, overload protection, power-on sort circuit detection etc | |
| LED display | 5-bit LED display | |
| Parameter locking function | The parameter read-only function can be set to prevent misoperations | |
| Automatic voltage adjustment AVR function | When the grid voltage changes, the output voltage can be kept constant automatically | |
| Application environment | Operetion place | Indoor, free from direct sunlight, no dust, no corrosive gas, no combustible gas, no oil mist, no water mist, no drip salt, etc. |
| Atitude | Lower than 1000m. Service in derated capacity when above 1000m. Derate 1% capacity every 100m increase in height | |
| Ambient temperature | -10°C to +50°C (if the ambient temperature is 40°C to 50°C, please reduce the amount to use) | |
| Humidity | 95%RH, no water condensation | |
| Vibration | 5.9m/s2 (0.6G) | |
| Storage temperature | -25°C - 60°C | |
| Protection class | IP20 | |

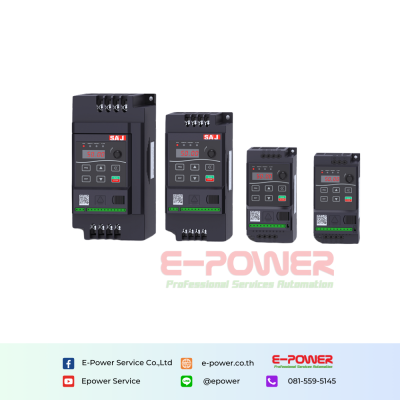

Product Model
| Model | Rated Power | Power capacity | Input current | Output current | Motor G/P | |
| kW | kVA | A | A | kW | HP | |
| Single 220V input three-phase 0-22V output | ||||||
| VM600G-2SR75-E | 0.75 | 1.5 | 8.2 | 4 | 0.75 | 1 |
| VM600G-2S1R5-E | 1.5 | 3 | 14 | 7 | 1.5 | 2 |
| VM600G-2S2R2-E | 2.2 | 4 | 23 | 9.6 | 2.2 | 3 |
| Three 380V output three-phase 0-380V output | ||||||
| VM600G-4TR75-E | 0.75 | 1.5 | 3.4 | 2.5 | 0.75 | 1 |
| VM600G-4T1R5-E | 1.5 | 3 | 5 | 3.8 | 1.5 | 2 |
| VM600G-4T2R2-E | 2.2 | 4 | 5.8 | 5.1 | 2.2 | 3 |
| VM600G-4T004-E | 4 | 5.9 | 10.5 | 9 | 4 | 5.5 |
| VM600G-4T5R5-E | 5.5 | 8.9 | 14.6 | 13 | 5.5 | 7.5 |
| VM600G-4T7R5-E | 7.5 | 11 | 20 | 17 | 7.5 | 10 |
Manual VM600 General Inverter V03-20211227053659974
