Characteristics
Specification

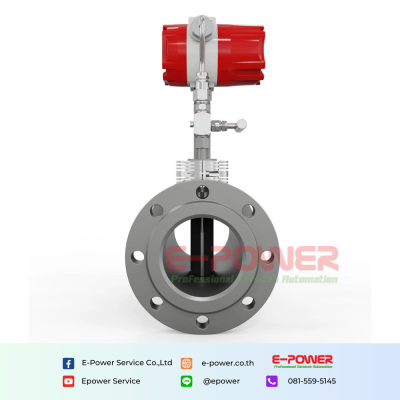

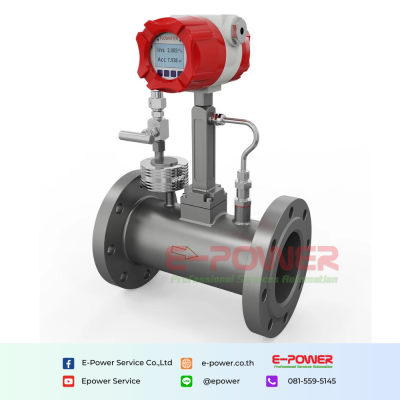

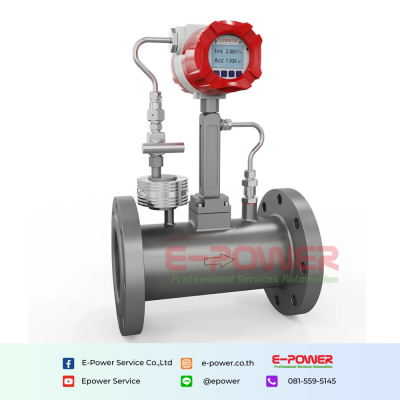

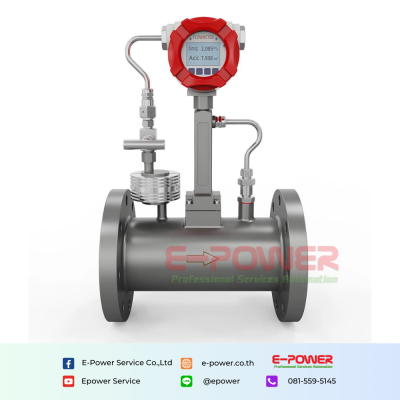

Product | Vortex flowmeter with temperature & pressure compensation | |
Model | SUP-LUGB | |
Diameter nominal | DN10~DN500 | |
Installation | Wafer connection: DN10-DN500(priority PN2.5MPa) Flange connection: DN10-DN80(priority PN2.5MPa);DN100-DN200(priority PN1.6MPa);DN250-DN500(priority PN1.0MPa) | |
Accuracy | 1.5%, 1.0% | |
Range Ratio | 8:1 | |
Medium Temperature | -20°C ~ +150°C, -20°C ~ +260°C, -20°C ~ +320°C, -20°C ~ +420°C | |
Output signal | 4-20mA | |
Frequency | RS485 communication (Modbus RTU) | |
Power supply | 24VDC±5% Li battery(3.6VDC) | |
Ingress protection | IP65 | |
Body Materials | Stainless shell | |
Display | 128*64 dot matrix LCD |
